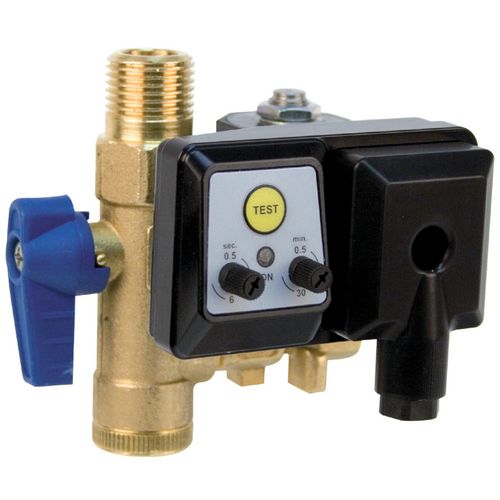

For automatic, timed draining of condensate or other non-aggressive fluids from the compressed air system
Drain off quantity max. (short-term) | 95 l/h |
Explanation drain off quantity max. | at 7 bar |
Flow rate | 2.4 l/min |
Operating pressure | 0 – 16 bar |
Operating temperature | 1.5 – 65 °C |
IP degree of protection | IP65 |
Condensate feed | G½ " |
Condensate outlet | G¼ |
Time span ON | 0.5 – 10 s |
Time span OFF | 0.5 – 45 min |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 77 mm |
Width/depth approx. | 79 mm |
Height approx. | 93 mm |
Electrical Data |
---|
Supply voltage | 230 V |
Unit: pc(s).
Packaging unit: 1
