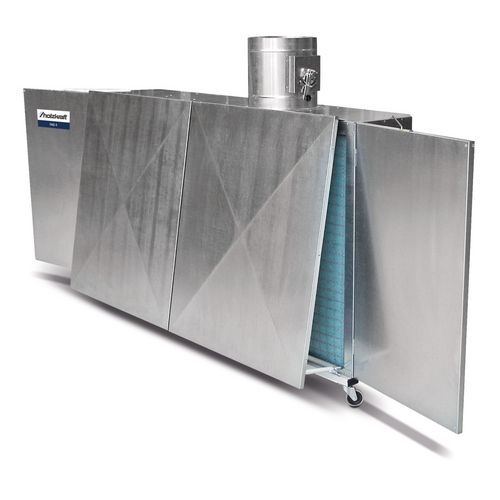

Paint fume extraction


For extracting toxic, unhealthy fumes at painting workplaces

5.119,00 EUR excl. Tax / pc(s).
6.142,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5134004

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Ideal in woodworking plants, in joineries / carpentry stores and general trades
    • Highly efficient air purification with high degree of separation
    • Mobile device for use in different places in the workshop
    • Easy handling
    • Certified for ATEX Zone 2
    • Long filter service life
    • Delivered ready to plug in


    Dimensions and weights
    Length max. approx.2971 mm
    Width/depth max. approx.1215 mm
    Extraction duct outlet outside nominal width298 mm
    Length approx.1912 mm
    Width/depth approx.943 mm
    Height approx.1405 mm
    Weight approx.248 kg
    Electrical Data
    Idle Speed1465 min¯¹
    Drive motor output2,2 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Filter surface area2.0 m²
    Noise emission
    Max. sound pressure level72 dB(A)
    Volume flow
    Max. negative pressure500 Pa
    Unit: pc(s).
    Packaging unit: 1
