| Circular saw unit | |
|---|---|
| Trimming length | 730 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height at 90° | 75 mm |
| Max. cutting height at 45° | 60 mm |
| Diameter of (main) saw blade | 254 mm |
| (Main) saw blade speed | 4750 min¯¹ |

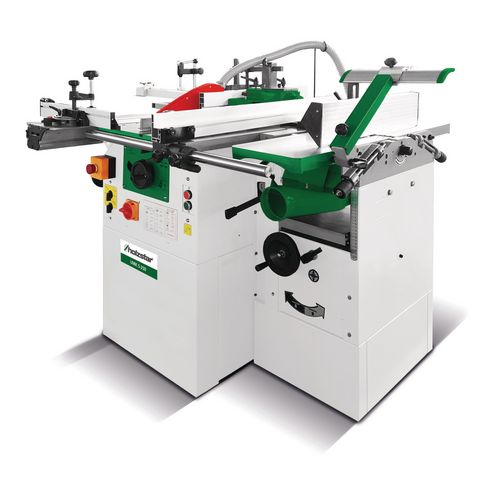

Universal multiple combination
UMK 5-250 (400 V)
Compact multiple combination for planing/thicknessing, sawing, milling and optionally with slot drilling device
3.899,00
EUR excl. Tax / pc(s).
4.678,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5946126
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Robust machine table made of grey cast iron enables precise work
- Function selection via rotary switch
Planer/thicknesser
- Adjustment of the thicknessing table by handwheel
- Rubberized pull-out roller protects the surface of the workpiece during thickness planing
- Dressing and thicknessing table made of grey cast iron with ground surface
- Strip cutter planing shaft with three HSS knives
- Aluminium planing fence can be tilted by 45
Sizing saw
- Circular saw blade can be tilted up to 45
- Table extension arm with aluminium crosscut fence for panels and large workpieces
- Including workpiece clamping made of cast aluminium and adjustable micro stop
- Aluminium sliding carriage with 1300 mm length
- Aluminium rip fence with round bar guide and fine adjustment
Table milling machine
- Rigid milling spindle
- Spindle height adjustable by 100 mm
Oblong hole drilling device
- Available as accessories
- Wescott drill chuck 3 - 16 mm
- Robust cast iron machine table for precise machining operations
- Function selection via rotary switch
Planer/thicknesser:
- Rubberized pull-out roller protects the surface of the workpiece during thickness planing
- Dressing and thicknessing table made of grey cast iron with ground surface
- Strip cutter planer shaft with three HSS knives
Sizing saw:
- Table extension arm with aluminium crosscut fence for panels and large workpieces
- Including workpiece clamping made of cast aluminium and adjustable micro stop
- Aluminium sliding table with 1300 mm length
- Aluminium rip fence with micro-adjustment and cast iron round bar guide
Table milling machine:
- Spindle height adjustable by 100 mm
Oblong hole drilling device (optional):
- Wescott drill chuck 3 - 16 mm
| Dimensions and weights | |
|---|---|
| Length approx. | 2200 mm |
| Width/depth approx. | 1400 mm |
| Height approx. | 1300 mm |
| Weight approx. | 345 kg |
| Electrical Data | |
|---|---|
| Input power saw | 2,2 kW |
| Input power planer | 1,5 kW |
| Input power moulder | 1,4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Saw blade protection extraction port diameter | 30 mm |
| Extraction port diameter thickness | 100 mm |
| Feed | |
|---|---|
| Speed | 8 m/min |
| Feed shaft diameter | 32 mm |
| Jointing | |
|---|---|
| Infeed table width | 250 mm |
| Infeed table length | 1090 mm |
| Max. cutting depth | 3 mm |
| Milling cutter diameter max. | |
|---|---|
| not lowerable | 140 mm |
| Milling spindle | |
|---|---|
| Mandrel diameter | 30 mm |
| Usable length | 80 mm |
| Height adjustment | 100 mm |
| Speed(s) | 4500/6500/8500 min¯¹ |
| Noise emission | |
|---|---|
| Sound pressure level idle | 81.7 dB(A) |
| Sound pressure level load | 94,5 dB(A) |
| Planing knife shaft | |
|---|---|
| Diameter | 75 mm |
| Number of planing blades | 3 St |
| Speed | 4000 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding table length | 1300 mm |
| Sliding table width | 210 mm |
| Sliding table height | 93 mm |
| Table length | 980 mm |
| Table width | 470 mm |
| Table height | 860 mm |
| Thickness | |
|---|---|
| Table length | 600 mm |
| Table width | 248 mm |
| Working height min. | 5 mm |
| Working height max. | 195 mm |
| Max. cutting depth | 2 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Eccentric clamp
- Angle stop with aluminium profile and hold-down
- 1x Saw blade 254x30x3 mm Z36
- 3x Planer blade 250x30x3 mm
