Brandimage to Product FBS 940-3 F43 Special

Sliding table band saws

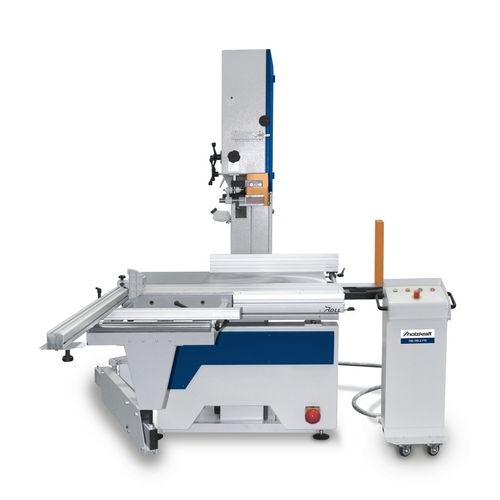

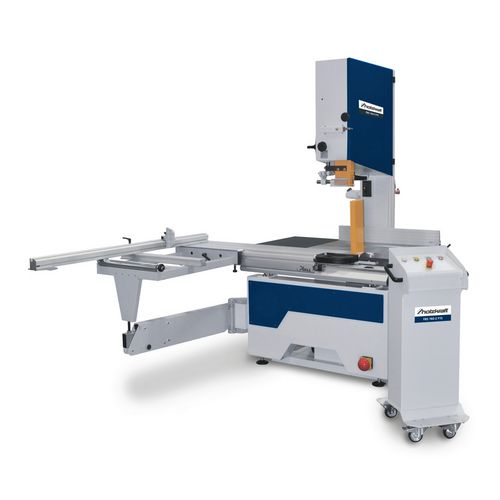

FBS 940-3 F43 Special

With sliding carriage and boom for cutting beams, blocks and insulating material

26.450,00 EUR excl. Tax / pc(s).
31.740,00 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5152945

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Particularly quiet and precise running thanks to torsion-resistant machine housing
    • Massive cast iron flywheels and chip wipers
    • Cast iron saw table with ground and polished surface
    • Smooth-running aluminum sliding carriage with telescopic crosscut fence with folding stops
    • Aluminum parallel fence with round rod guide
    • High operating comfort due to mobile control panel which can move along in the working radius
    • Special saw band guide at the top and bottom
    • Saw band tension indicator
    • Integrated lubrication system with felt glides

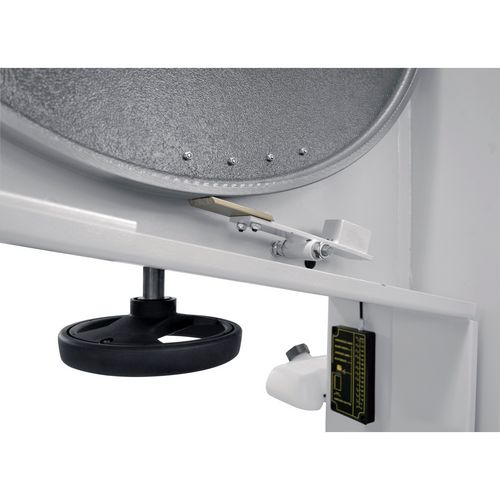

    • Precise cutting height adjustment via toothed rack with millimetre scale
    • Self-braking motor
    • Automatic star-delta start


    Cutting ranges
    Max. cutting height 90°620 mm
    Max. cutting width700 mm
    Dimensions and weights
    Weight approx.1350 kg
    Electrical Data
    Delivery power11 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 140 mm
    Saw band
    Speed(s)1500 m/min
    Length6670 mm
    Work top(s)
    Sliding carriage length4300 mm
    Sliding carriage width380 mm
    Unit: pc(s).
    Packaging unit: 1




    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
