| Circular saw unit | |
|---|---|
| Saw blade angle | -45 – 45 ° |
| Swivel angle saw arm | -45 – 45 ° |
| Max. cutting height 45° | 570 x 120 mm |
| Max. cutting height -45° | 470 x 120 mm |
| Max. cross section | 900 x 20 / 855 x 80 mm |
| Max. cutting height 0°/45° | 120 / 83 mm |
| (Main) saw blade diameter | 400 mm |
| Diameter saw blade bore | 30 mm |
| (Main) saw blade speed | 2800 min¯¹ |

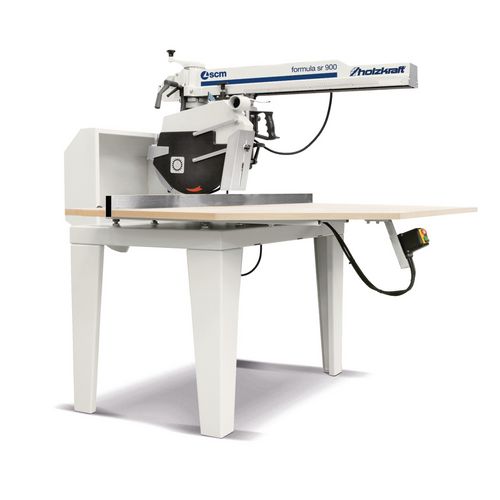

Radial arm saw
sr 900
For ripping and peeling floorboards
5.990,00
EUR excl. Tax / pc(s).
7.188,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5504090
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For large cut lengths e.g. For kitchen builds or floorboards
- Small footprint and versatile
- Quick retooling for either double mitre cuts or cross cutting
- Robust cast iron swivel arm with interchangeable hexagonal guides
- Movable saw unit with return spring, eightfold bearing for precise cuts
- Sawing unit stop swivels through 45° on both sides
- Motor with mechanical brake
- Aluminium stop as standard
- Roller conveyors of one meter in length available as accessories for both sides
- Robust cast iron swivel arm with interchangeable hexagonal guides
- Movable saw unit with return spring, eightfold bearing for precise cuts
- Sawing unit stop swivels through 45° on both sides
- Motor with mechanical brake
- Aluminium stop as standard
- Roller conveyors of one meter in length available as accessories for both sides
| Dimensions and weights | |
|---|---|
| Length approx. | 2110 mm |
| Width/depth approx. | 1580 mm |
| Height approx. | 1500 mm |
| Weight approx. | 300 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Saw blade protection extraction port diameter | 60 mm |
| Noise emission | |
|---|---|
| Sound pressure level | 84 dB(A) |
| Sound power level | 100 dB(A) |
| Sliding carriage and table | |
|---|---|
| Table length | 2060 mm |
| Table width | 1320 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
