Productdetails
- Compact and handy design for comfortable use
- Variable speed range from 11500 to 24000 min¯¹
- Spindle height adjustable from 0 to 40 mm

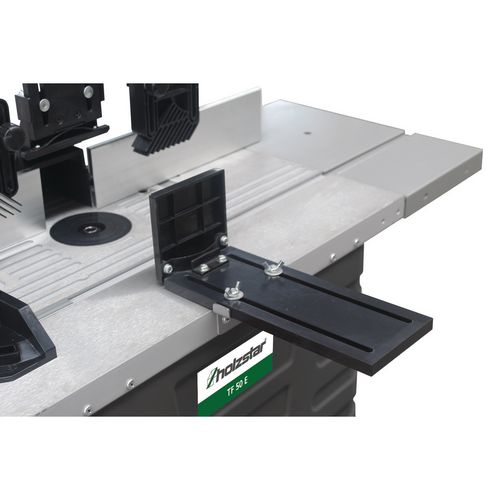

- Large table support thanks to standard extensions on both sides
- Work table made of aluminum
- Mitre stop and various collets included
Dimensions and weights |
---|
Max. length | 610 mm |
Max. width/depth | 360 mm |
Max. height | 311 mm |
Length approx. | 1030 mm |
Width/depth approx. | 360 mm |
Height approx. | 311 mm |
Weight approx. | 21 kg |
Electrical Data |
---|
Drive motor output | 1,5 kW |
Supply voltage | 230 V |
Mains frequency | 50 Hz |

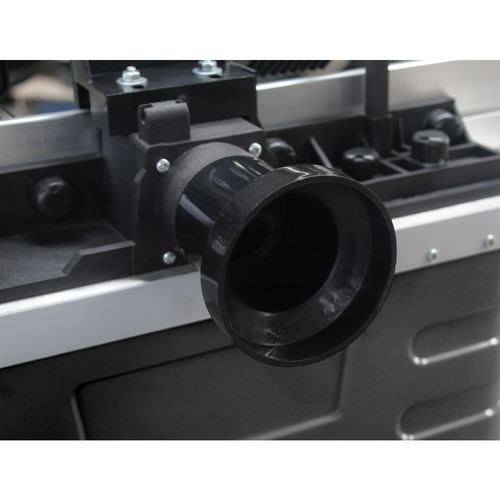

Extraction port |
---|
Extraction port diameter | 100 mm |
Milling cutter diameter max. |
---|
Max. tool diamter | 50 mm |
Milling spindle |
---|
Stroke | 40 mm |
Speed(s) | 11500 – 24000 min¯¹ |
Work table |
---|
Length | 610 mm |
Width | 360 mm |
Table height | 311 mm |
Unit: pc(s).
Packaging unit: 1
- Table extensions on both sides

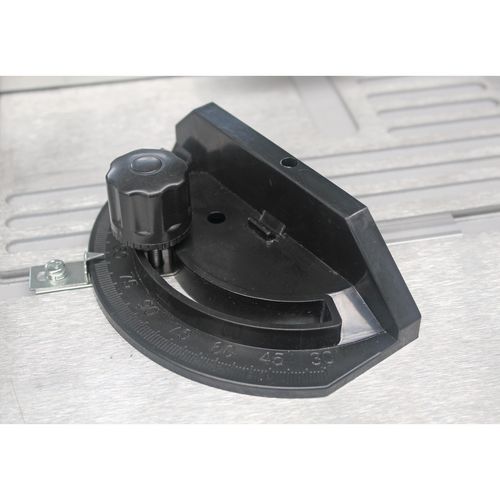

- Mitre fence
- Aluminum routing fence
- Collets for 6, 8 i 12 mm
- Assembly tool (hexagon socket wrench 4mm and 5mm, wrench SW19 and SW24)

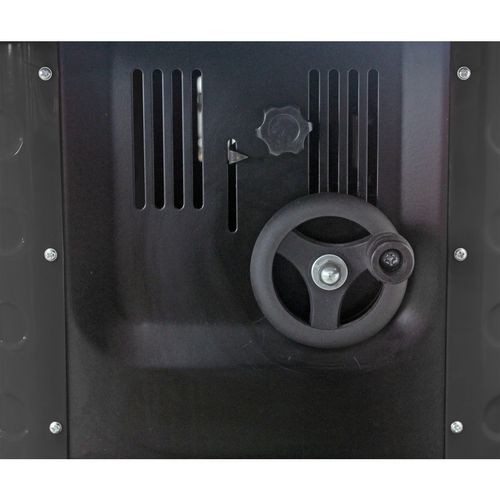

Height adjustment of the spindle | manual |
