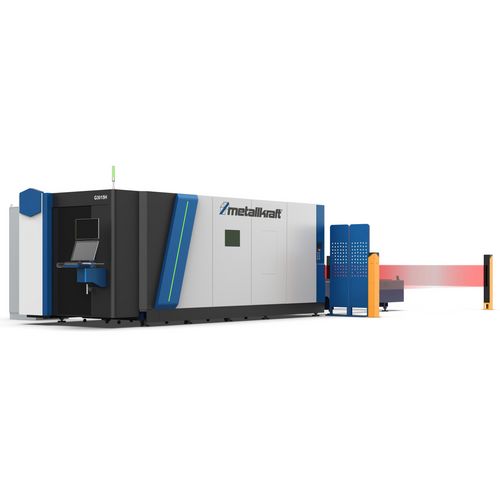

Laser cutting system
GH 8025 12kW
with automatic shuttle table
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4650165
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Maximum dynamics thanks to 4G acceleration at 200 m/min rapid traverse
- Highest machine rigidity due to multi-reinforced machine bed
- High-quality components from leading manufacturers

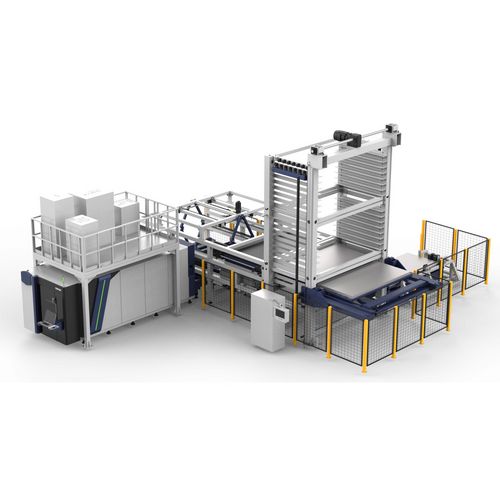

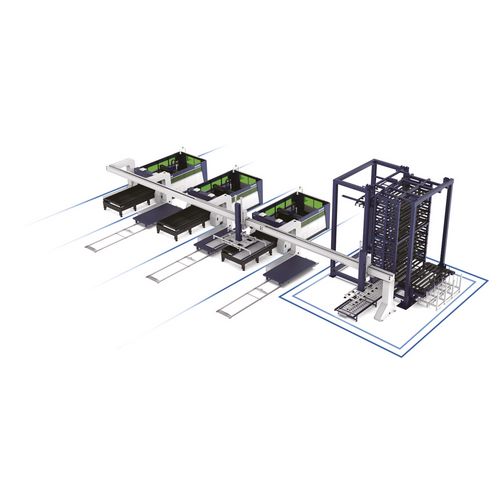

- Can be optionally equipped with automation options
- Shuttle table laser cutting system - simultaneous cutting and set-up of the machine - maximum efficiency
- Fully protected work area ensures maximum safety - A viewing window and video surveillance allow visual monitoring of the cutting process.
- Stable, welded machine bed in combination with highly dynamic drive systems from Innovance® and Alpha Wittenstein® ensure maximum process accuracy.

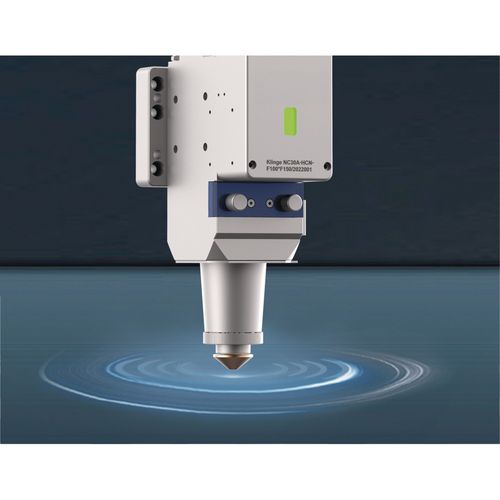

- High-quality laser sources from the renowned manufacturer Raycus® ensure maximum beam quality and process reliability.

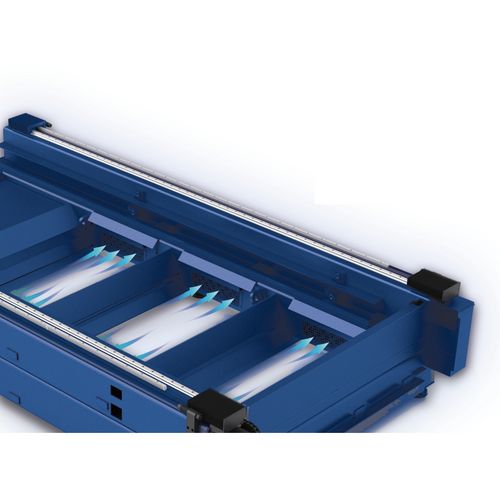

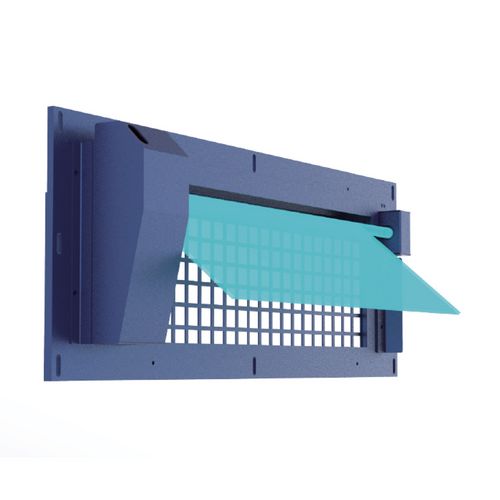

- Intelligent extraction system: Position-controlled extraction flaps ensure maximum extraction performance

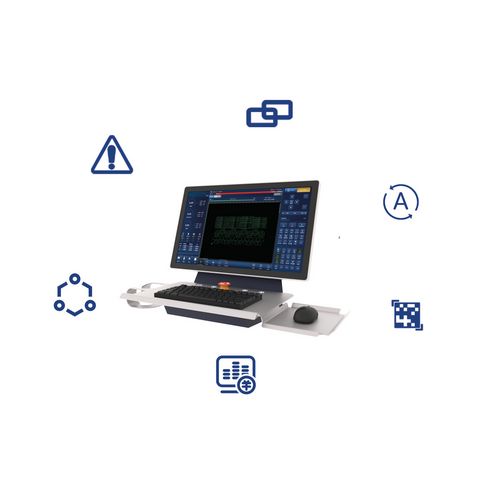

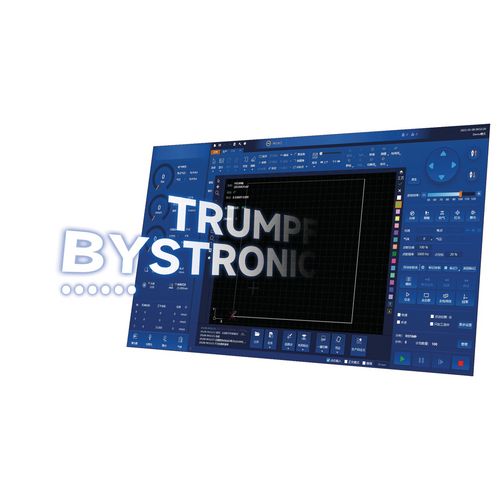

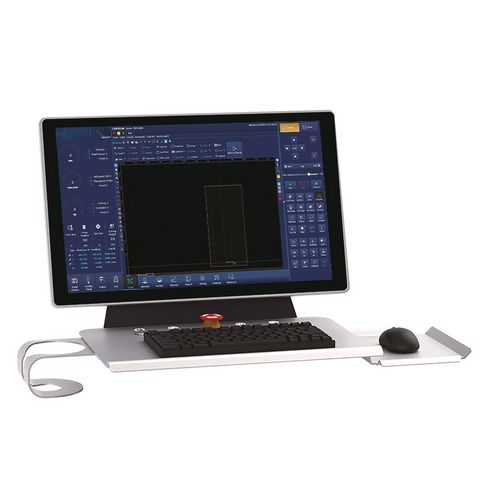

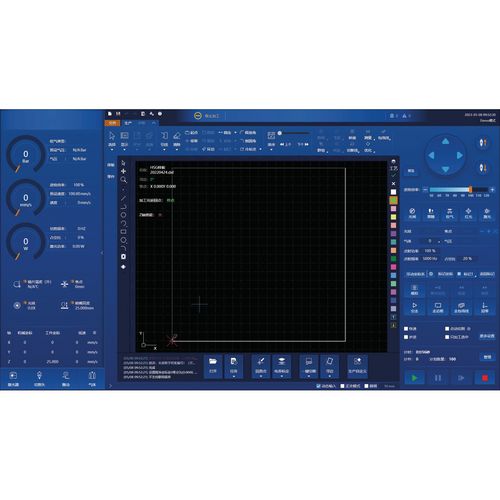

- Extremely simple machine operation thanks to the intelligent AlphaT Plus® control system
- Offline nesting software Cypnest Professional™ from the renowned manufacturer BOCHU® included in the scope of delivery as a lifetime license
| Max. travel X-axis | 2540 mm |
| Max. travel Y-axis | 8150 mm |
| Max. travel speed | 200 m/min |
| Position accuracy | ± 0.03 mm/m |
| Max. machine table load | 6300 kg |
| Acceleration | 2.8 G |
| VPE | 1 |
| Cutting performance | |
|---|---|
| Material thickness max. mild steel | 40 mm |
| Material thickness max. stainless steel | 40 mm |
| Material thickness max. aluminum | 470 mm |
| Material thickness max. brass | 16 mm |
| Explanation Material thickness max. | Information on the maximum material thickness depending on the cutting gas used (nitrogen, oxygen, air) |
| Dimensions and weights | |
|---|---|
| Length approx. | 20700 mm |
| Width/depth approx. | 4150 mm |
| Height approx. | 2480 mm |
| Weight approx. | 22500 kg |
| Electrical Data | |
|---|---|
| Laser power | 12 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device and a remote server |
| Data access | On the device and physical and wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Cooling unit
- Stabilizer
- Protective device / light barriers
