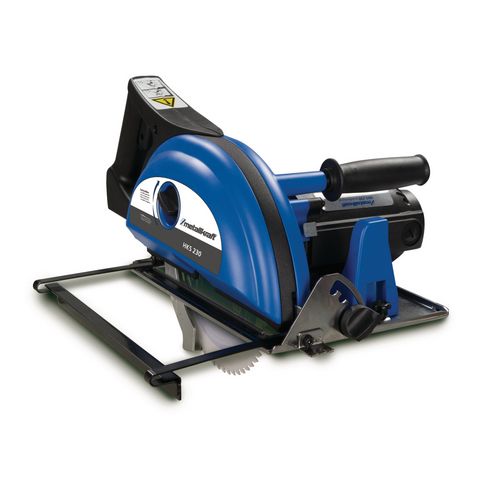

Metal circular saw

HKS 230

For operation and construction sites for cutting aluminum, steel and stainless steel

359,00 EUR excl. Tax
430,80 EUR incl. 20% Tax

Prices are recommended retail prices, for which existing promotional offers have not been taken into account. Retailer prices may vary.

Art.-No. 3840231

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • the ideal machine for assembly companies, facade builders, locksmiths, repair shops, stand builders, etc.
    • Ideally used where cut-off machines are not strong enough or work uncleanly
    • cuts stainless steel without burrs
    • Chips dissipate the heat, thus only low heat development when cutting
    • Heavy-duty motor with soft start and overload protection
    • Dipping into the material possible
    • uncomplicated and fast cutting depth adjustment on the basis of a precise and easy to read scale
    • stable and robust construction
    • Handle can be screwed in two different positions for convenient handling of the saw in each position
    • easy handling



    Room amenities:

    • uncomplicated and fast cutting depth adjustment on the basis of a precise and easy to read scale
    • fast saw blade change by gear lock pin
    • with a double rip fence for precise cutting

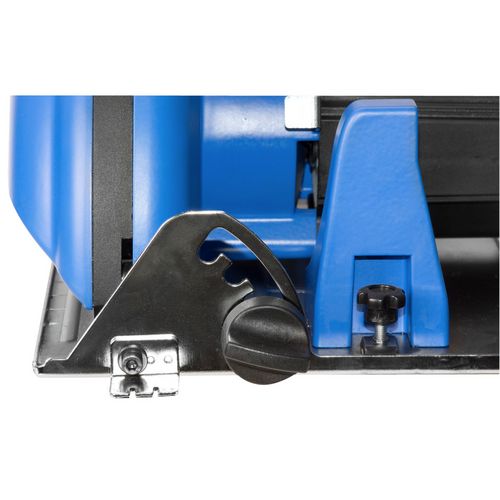

    • stepless and comfortable setting of the miter angle; Grids at 0 °, 15 °, 30 ° and 45 °
    • Handle can be remounted at Miter cuts, so that the saw can be guided safely parallel to the cutting plane



    Saw blade speed(s)2200 min¯¹
    Saw blade diameter230 mm
    VPE1
    Cutting capacity
    0° (square) pipe82 mm
    +45° (square) pipe56 mm
    Dimensions and weights
    Length620 mm
    Width/depth320 mm
    Height270 mm
    Weight approx.7.1 kg
    Electric Data
    Drive motor output1.7 kW
    Supply voltage230 V
    Mains frequency50 Hz

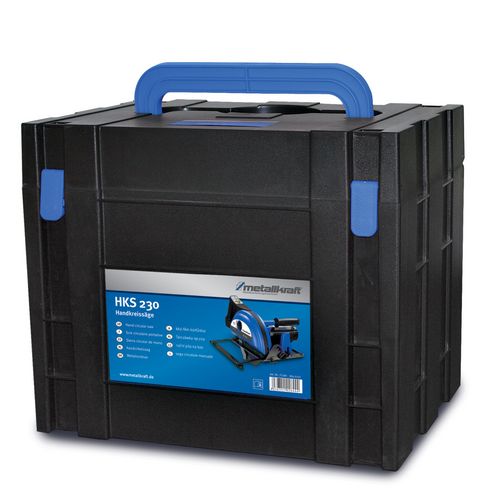

    • Machine is delivered in a robust plastic case without saw blade
