Pressure force | 50 t |
Max. load on prism jaw | 12.5 t |
Piston stroke | 150 mm |
Piston travel | 500 mm |
VPE | 1 |

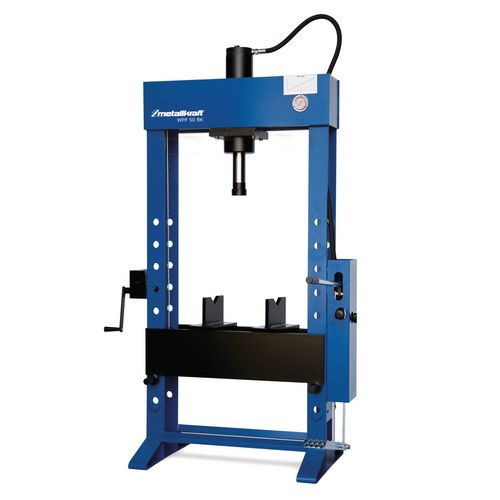

Hydraulic workshop press
With hand and foot pump and movable cylinder
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 4002050
Note:
Pressure force | 50 t |
Max. load on prism jaw | 12.5 t |
Piston stroke | 150 mm |
Piston travel | 500 mm |
VPE | 1 |
Dimensions and weights | |
---|---|
Clear width | 790 mm |
Max. installation height | 1000 mm |
Frame depth | 210 mm |
Length approx. | 1400 mm |
Width/depth approx. | 650 mm |
Height approx. | 2000 mm |
Weight approx. | 360 kg |
Electrical Data | |
---|---|
Supply voltage | 400 |
Mains frequency | 50 |
