| Bending performance | |
|---|---|
| Max. bending performance in steel 400 N/mm²² | 1 mm |
| Max. bending performance in stainless steel | 1 mm |
| Max. bending performance aluminium | 2 mm |
| Max. bending performance in brass | 1 mm |
| Max. bending performance gold/silver/tin plate | 2 mm |
| Max. bending performance narrow widths | 3 mm |
| Min. bending diameter | 35 mm |
| Max. bending diameter | unlimited |

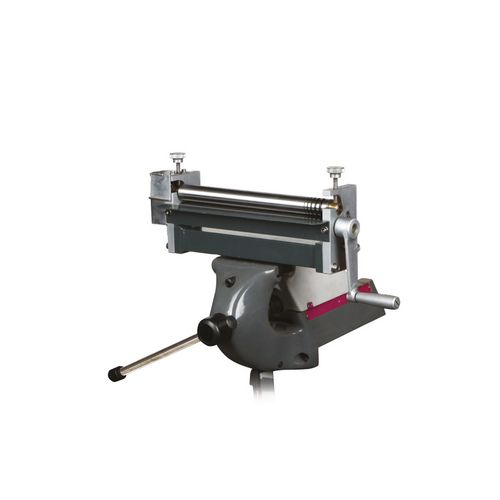

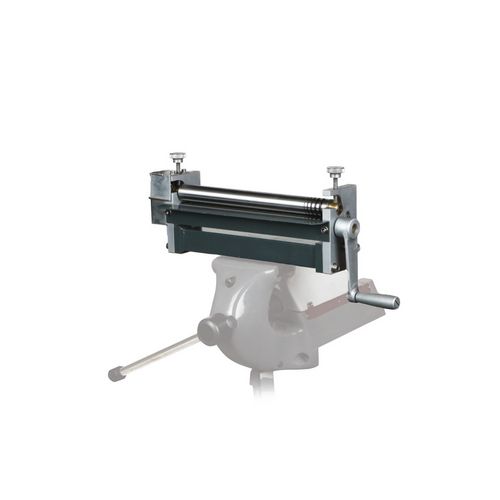

Three-roll plate rolling machine
BM 3
Universally applicable
217,00
EUR excl. Tax / pc(s).
260,40
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3244030
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Bending and rolling of wires, pipes and sheets
- Ground bending rolls
- Mounted steel sidewalls (self-lubricating)
- Two removable rollers

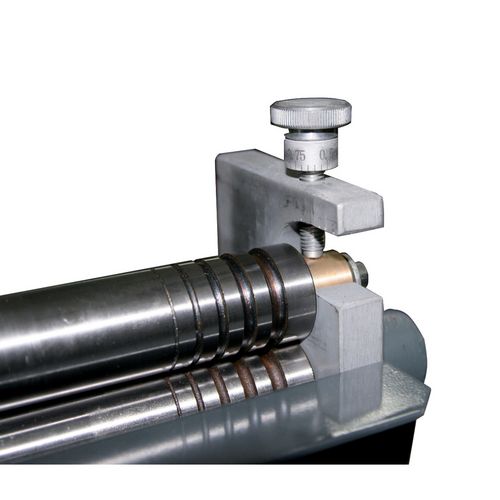

- Separate adjustment for material thickness and rolling radius
- For use on the vise
- Stable support surface
- Wire insert grooves Ø 1 - 2 - 3 - 4 - 5 mm
| Dimensions and weights | |
|---|---|
| Max. working width | 310 mm |
| Top roller diameter | 30 mm |
| Wire insert groove diameter | 1/2/3/4/5 mm |
| Length approx. | 492 mm |
| Width/depth approx. | 190 mm |
| Height approx. | 185 mm |
| Weight approx. | 10 kg |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
