| Dimensions and weights | |
|---|---|
| Column diameter | 200 mm |
| Length approx. | 850 mm |
| Width/depth approx. | 1060 mm |
| Height approx. | 2545 mm |
| Weight approx. | 907 kg |
Getriebebohrmaschine

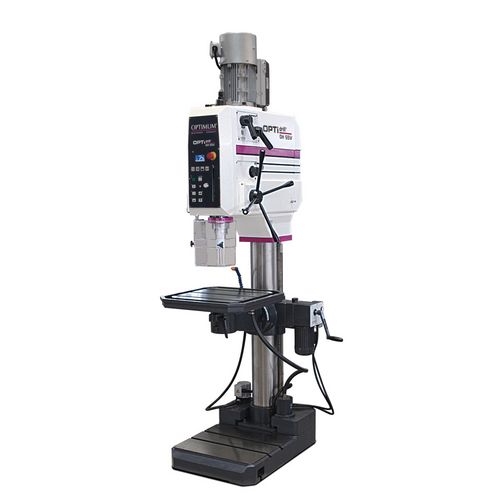

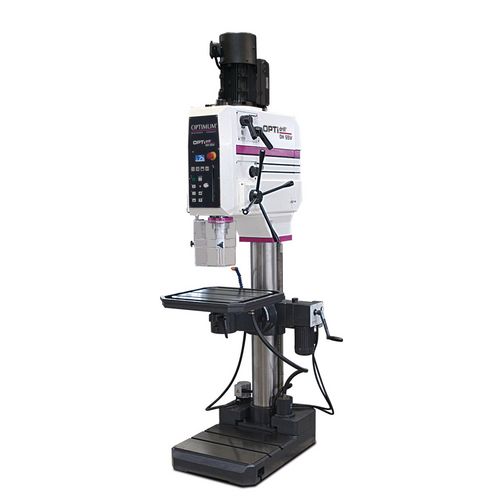

OPTIdrill DH 55V
With a thread-cutting unit for industrial use and infinitely variable speed control
13.300,00
EUR excl. Tax / pc(s).
15.960,00 EUR incl. 20% Tax / pc(s).
15.960,00 EUR incl. 20% Tax / pc(s).
Promotional price *
12.599,00 EUR excl. Tax / pc(s).15.118,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2026 in Germany.
Art.-No. 3034268
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy-duty, solid cast construction
- Dirt- and water-resistant, easy-to-clean membrane keypad
- 24V DC electronics</ li>
- Electrically operated quill feed
- Drilling depth stop
- Automatic gear lubrication via oil pump
- Thread cutting device
- Large, height-adjustable protective screen with safety switch for maximum user protection</ li>
- Large, solid drill table, precision-machined with three parallel T-slots and a circumferential coolant channel, heavily ribbed at the rear, tiltable ± 90° to the side
- Coolant system and coolant tank can be removed for easy and complete draining
- Integrated ejector</ li>
- Machine lamp integrated into the drill head
- Chip filter in accordance with the Machinery Directive
- Sturdy, thick-walled cast iron column for high load-bearing capacity
- Solid base plate with two parallel T-slots, precision-finished surface
DH 55V
- Infinitely variable speed control
- Programmable feed stop

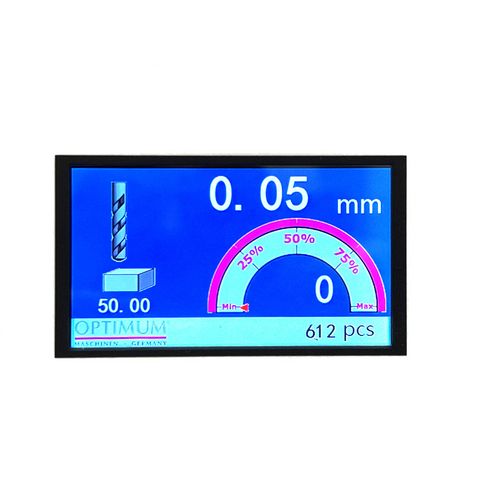

- Easy-to-read digital display
- Digitally adjustable drilling and threading depth
- Digital zero point setting
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 55 mm |
| Continuous drilling performance steel (S235JR) | 50 mm |
| Thread tapping steel (S235JR) | M 42 |
| Drilling table | |
|---|---|
| Workspace length | 600 mm |
| Workspace width | 600 mm |
| T-groove size | 18 mm |
| T-groove number | 3 |
| T-groove spacing | 160 mm |
| Rotation | 360 ° |
| Angle | 90 ° |
| Load bearing capacity | 350 kg |
| Max. distance spindle - drilling table | 725 mm |
| Min. distance chuck - drilling table | 130 mm |
| Min. distance spindle - drilling table | 130 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 2.8 kW |
| Coolant pump output | 100 W |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle - machine base | 1300 mm |
| Work area length | 515 mm |
| Work area width | 570 mm |
| Machine base T-groove size | 18 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 150 mm |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | Via wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
| Speed range | |
|---|---|
| Speed range | 10 3000 min¯¹ |
| Number of gears | 4 Steps |
| Speed control | electronically adjustable |
| Spindle | |
|---|---|
| Quill stroke | 190 mm |
| Quill diameter | 60 mm |
| Spindle chuck | MT 4 |
| Reach | 400 mm |
| Quill feed speed | 0.1 – 0.2 mm/rev |
| Quill feed gears | 3 Steps |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Quick-action drill chuck 1 - 16 mm
- Tapered arbor for drill chuck MK 4/B16
