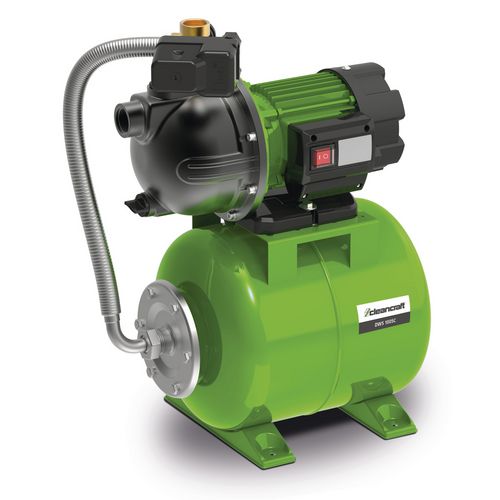

Productimage for DWS 1005C
Brandimage to Product DWS 1005C

Domestic waterworks

DWS 1005C

with rugged cast iron pump housing

259,00 EUR excl. Tax / pc(s).
310,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 7522105

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Self-priming pump for household water supply (garden of pressure build-up)
    • Energy-saving: Water tank stores 19 litres of water and thus buffers minor water requirements
    • Equipped with pressure switch for efficient automatic operation
    • With stainless steel flange on the pressure vessel



    • Self-priming pump for household water supply (garden of pressure build-up)
    • Energy-saving: Water tank stores 19 litres of water and thus buffers minor water requirements
    • Equipped with pressure switch for efficient automatic operation
    • With stainless steel flange on the pressure vessel



    Dimensions and weights
    Length approx.452 mm
    Width/depth approx.270 mm
    Height approx.522 mm
    Weight approx.16.2 kg
    Drive
    Motor output1,1 kW
    Electrical Data
    Supply voltage230 V
    Mains frequency50 Hz
    Pump
    TypeClearwater
    Max. lift46 m
    Discharge capacity76 l/min
    Discharge port diameter25 mm
    Suction head8 m
    VPE1
    Unit: pc(s).
    Packaging unit: 1
