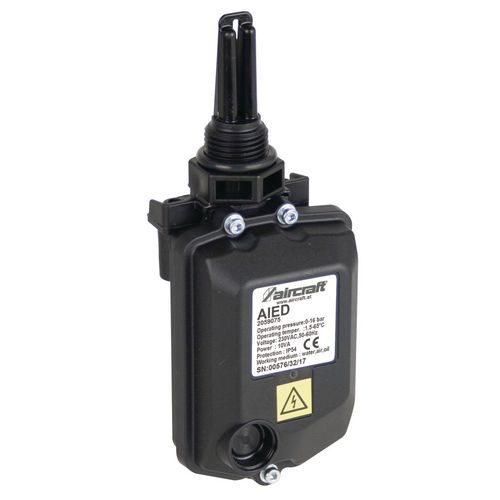

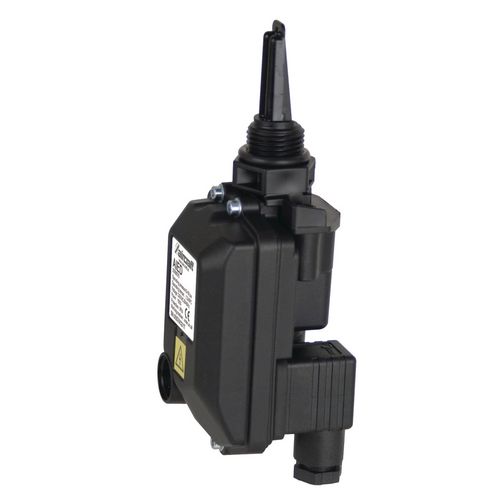

    Condensate drain (electronic)

    AIED

    Reliable, autonomous removal of condensate

    104,90 EUR excl. Tax / pc(s).
    125,88 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 2059075

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Fully automatic removal of condensate and other non-aggressive fluids from filter housings
    • Collection reservoir collects condensate until it reaches the water level
    • Capacitive sensor initiates automatic draining of condensate without loss of air
    • LED indicator
    • test button



    Drain off quantity max. (short-term)8 l/h
    Explanation drain off quantity max.at 7 bar
    Compressor output10 W
    Filter performance55 m³/min
    Operating pressure0 – 16 bar
    Operating temperature1.5 65 °C
    IP degree of protectionIP54
    Condensate feedParallel thread ½ "
    Explanation operating temperatureMax. Operating temperature at 65 ° C, but if temperature is over 45 ° C, performance may be affected
    Mode of operationAutomatically level-controlled
    VPE1
    Dimensions and weights
    Weight approx.0.3 kg
    Electrical Data
    Supply voltage230 V
    Mains frequency50/60 Hz
    Unit: pc(s).
    Packaging unit: 1
