Condensate drain (electronic)

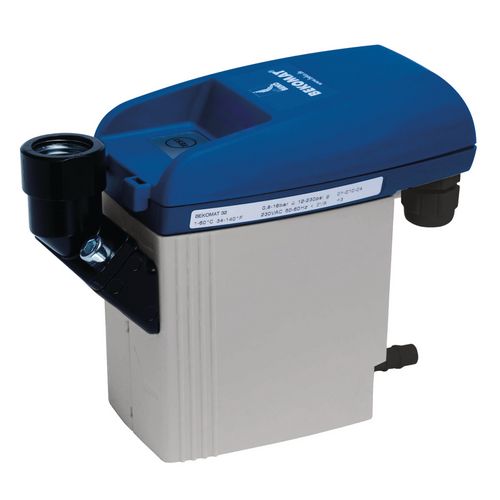

BEKOMAT 32

Save resources, increase efficiency

263,90 EUR excl. Tax / pc(s).
316,68 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 2049053

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

      When producing and conditioning compressed air, condensate inevitably accumulates, oily and frequently polluted with dirt particles. Since condensate accumulates irregularly depending on the year and time of day or load of the compressor, the BEKOMAT® with its capacitive sensor often pays for itself over time-controlled drain valves within half a year.
      Features and Benefits:

      • Usable and resistant to oily and oil-free, aggressive condensates
      • Easy connection to filter or boiler by adapting the inlet nozzle with horizontal or vertical condensate inlet
      • With discharge with BEKOMAT® improved function with oil / water separators
      • BEKOMAT® 32 with alarm function and switchable fault message

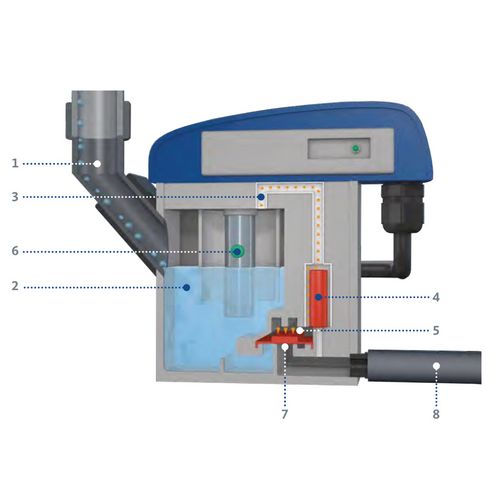

      function Description

      • Condensate collects in the collection container of the arrester.
      • A capacitive sensor detects the level of the condensate. At maximum level, a diaphragm opens, through which the condensate is discharged through the system pressure.
      • The membrane is closed before compressed air can escape


      The advantages at a glance

      • No unnecessary compressed air losses
      • Derivation according to the amount of seizure
      • Sensor detects every type of condensate
      • Insensitive to dirt
      • simple electrical installation (230 V)
      • Low maintenance

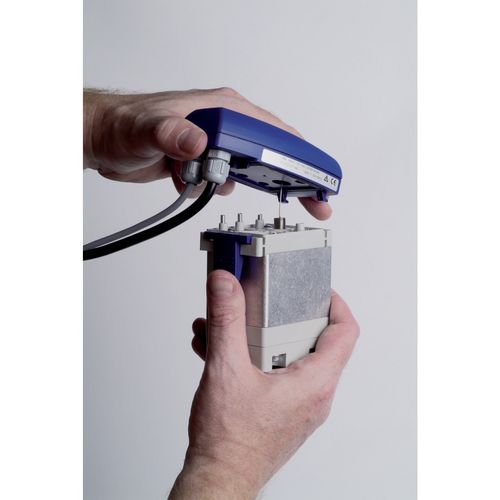

      Including service unit

      • Economical: Complete replacement of all wearing parts and pressure-bearing parts with just one handle.
      • no electrical installation required during maintenance
      • no assembly of seals and individual parts
      • Only one spare part, factory pressure and function tested



      Drain off quantity max. (short-term)10 l/h
      Explanation drain off quantity max.at 4 - 7 bar
      Compressor output5 m³/min
      Dryer performance10 m³/min
      Filter performance50 m³/min
      Operating pressure0.8 – 16 bar
      Operating temperature+1 – +60 °C
      IP degree of protectionIP67
      Condensate feedG½ "
      Condensate outlet1 x G¼; hose connector, hose Ø = 10 mm (inside)
      VPE1
      Dimensions and weights
      Length approx.179 mm
      Width/depth approx.73 mm
      Height approx.130 mm
      Weight approx.1,0 kg
      Electrical Data
      Supply voltage230 V
      Unit: pc(s).
      Packaging unit: 1
