Compressed air tank | |
---|---|
Maximum pressure | 10 bar |
Pressure vessel capacity | 90 l |
Tank vertical / horizontal | Horizontal |
Tank surface | Powder coated |

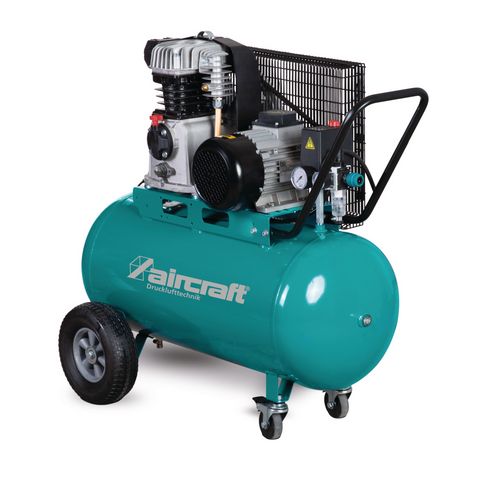

Piston compressor
Mobile piston compressors with belt drive
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 2007831
Compressed air tank | |
---|---|
Maximum pressure | 10 bar |
Pressure vessel capacity | 90 l |
Tank vertical / horizontal | Horizontal |
Tank surface | Powder coated |

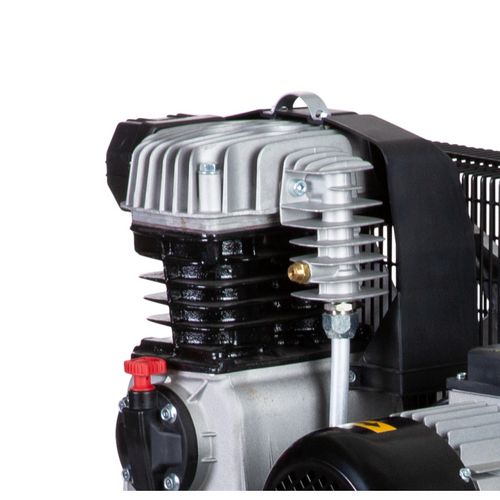

Compressor | |
---|---|
Compressor system | HOS |
Oil-free / oil-lubricated | Oil lubricated |
Suction capacity approx. | 850 l/min |
Filling capacity approx. | 680 l/min |
Explanation filling capacity | at 6 bar working pressure |
Number of cylinders | 2 |
Number of compressor stages | 2 |
Piston stroke | 78 mm |
Diameter of piston | 105 – 58 mm |
Dimensions and weights | |
---|---|
Length approx. | 1010 mm |
Width/depth approx. | 510 mm |
Height approx. | 1100 mm |
Weight approx. | 108 kg |
Electrical Data | |
---|---|
Drive motor | electric motor |
Delivery power | 5.5 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Noise emission | |
---|---|
Sound power level Lw | 95 dB(A) |
Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
Sound pressure level Lp | 79 dB(A) |
Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
VPE | 1 |

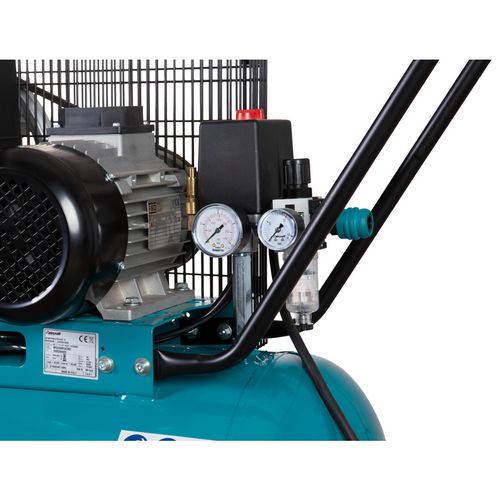

Pressure regulation | Filter pressure regulator |
Automatic pressure switch | CONDOR |
Drive transmission | V-belt |
Material compressed air line | Copper |
Compressed air treatment | Filter pressure regulator |
Compressed air outlet | One safety coupling, one ball valve |
Condensate drain | Ball valve |
Pressure vessel | Powder coated |

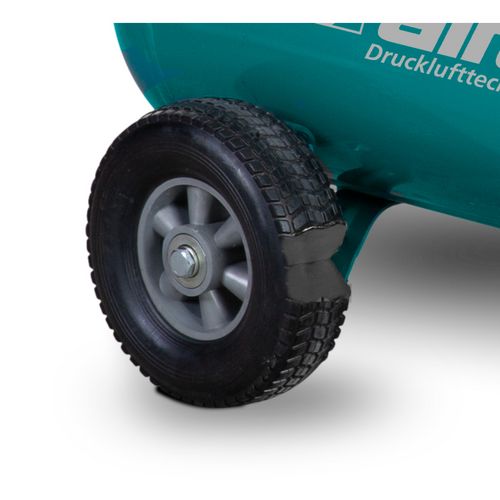

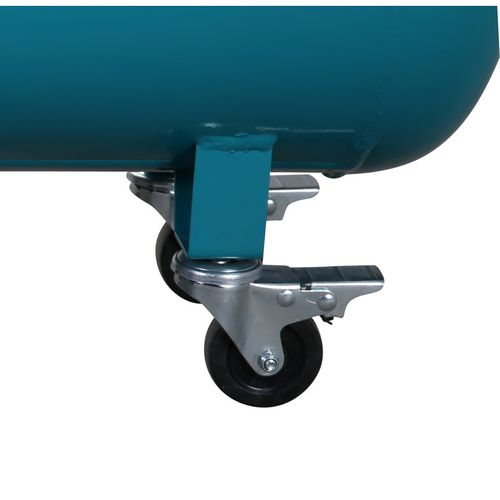

Compressor base | Two wheels with PU foam tires, two swivel castors with locking brake |
Connection cable | 2 m |
Connector | 400V CEE plug with phase inverter |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
