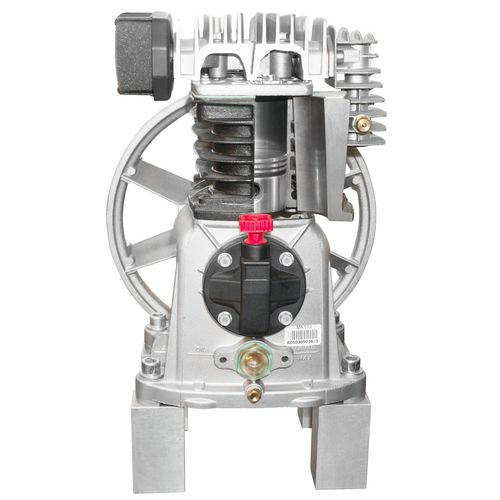

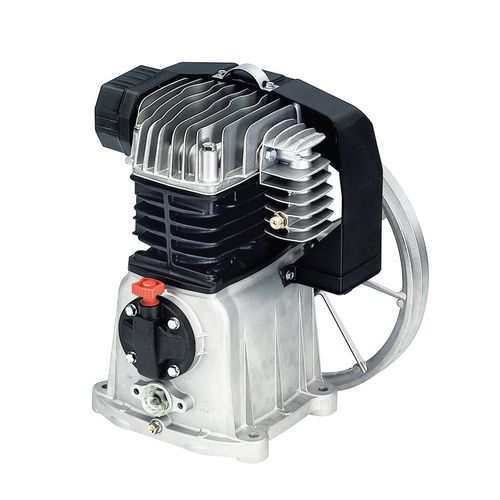

    • Productimage for MK 113
    • Productimage for MK 113
    • Productimage for MK 113
    • Productimage for MK 113
    Brandimage to Product MK 113

    Compressor

    MK 113

    Oil lubricated, V-belt driven compressor unit

    459,00 EUR excl. Tax / pc(s).
    550,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 2501312

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Cylinders and cylinder heads with long ribs for optimum heat dissipation;
    • carefully balanced crankshaft made of cast iron for better concentricity
    • Stainless steel valves with high air flow
    • Pulley designed as a fan
    • Optimized airflow, high fan performance
    • Highly efficient air filter with labyrinth intake channel for noise reduction



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    TypeSingle-stage
    Maximum pressure10 bar
    Number of cylinders2
    Suction capacity approx.556 l/min
    Filling capacity approx.409 l/min
    Explanation filling capacityat 8 bar working pressure
    Speed1300 min¯¹
    Drive transmissionV-belt
    VPE1
    Dimensions and weights
    Length approx.305 mm
    Width/depth approx.312 mm
    Height approx.374 mm
    Weight approx.18.3 kg
    Electrical Data
    Delivery power4 kW
    Duty type drive motorS1
    Noise emission
    Sound pressure level Lp81 dB(A)
    Unit: pc(s).
    Packaging unit: 1







    Aftercooler✔
    Air inlet channel✔
    Cylinder made of cast iron✔
    Forced ventilation✔
    Start-up relief valve✔
