| Effective delivery volume approx. | 1300 l/min |
| Maximum Pressure | 16 bar |
| Air outlet | 1 " |
| Oil-free / oil-lubricated | Oil-lubricated |
| Mobile / Stationary | Stationary |
| VPE | 1 |

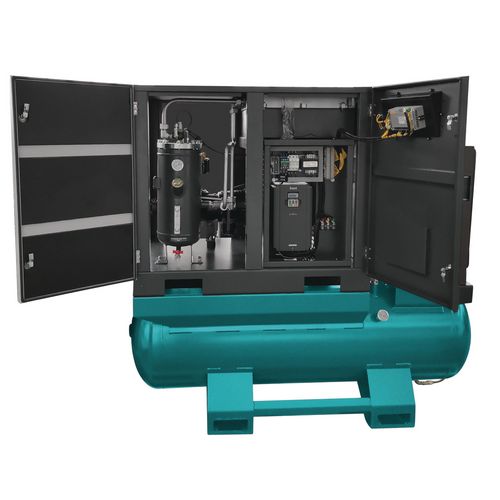

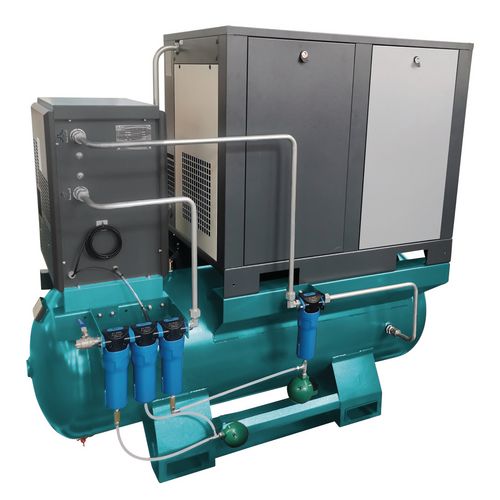

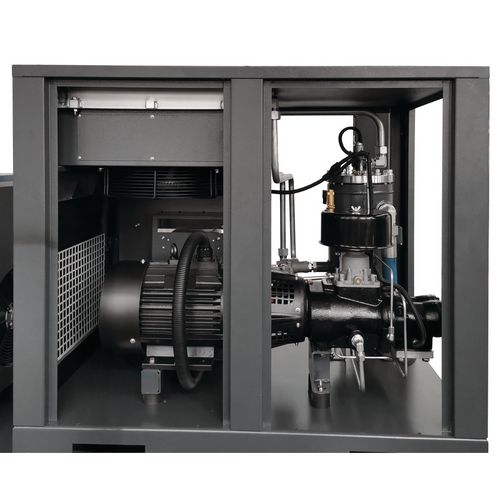

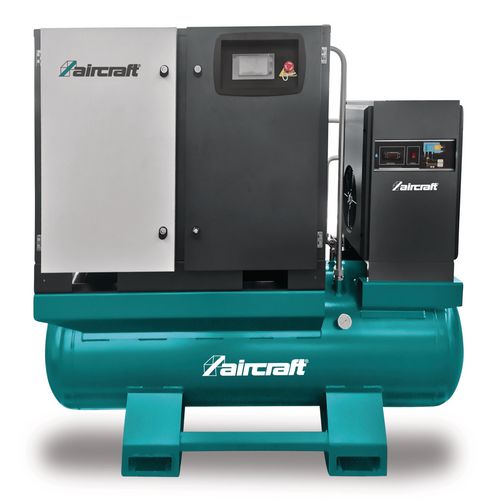

Screw compressor
ASC-D 15-16-500 VS (PM)
Energy-efficient screw compressor for laser cutting systems
9.690,00
EUR excl. Tax / pc(s).
11.628,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2079550
Are you interested in this product?
Put a request
Find Trader
Productdetails
- High delivery rate of approx. 1,100 l/min ensures a reliable supply for demanding applications
- Ideal for high-performance laser cutting applications thanks to 16 bar operating pressure
- Energy-efficient IE4 permanent magnet motor with variable speed control
- Clean compressed air for precise laser processes guaranteed by ISO 8573-1 air quality (class 1-4-1)
- Easy access to all maintenance points thanks to easily removable housing parts
- Convenient control of all functions via the intuitive touch panel
| Compressed air tank | |
|---|---|
| Pressure vessel capacity | 500 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1900 mm |
| Width/depth approx. | 940 mm |
| Height approx. | 1710 mm |
| Weight approx. | 690 kg |
| Electrical Data | |
|---|---|
| Motor power (input power) electric motor | 18 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Permanent magnet motor |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 70 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at a distance of 1 m according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Frequency controlled | No |
| Condensate drainage | ✔ |
| Drive transmission | Direct coupling |
