| Dimensions and weights | |
|---|---|
| Height approx. | 1900 mm |

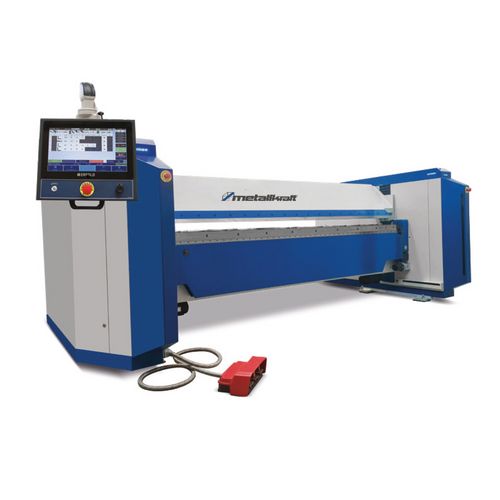

Motorized swing bending machine
heavy design
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Bending capacity | Dimensions and weights | Price | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Max. working width (mm) | VPE | 400N/mm² (mm) | Stainless steel (mm) | Aluminium (mm) | Length approx. (mm) | Width/depth approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 20% Tax | |
| MSBM-SERVO 2050 NC | 4135200 | 2050 | 1 | 5 | 3.5 | 6.5 | 3600 | 2300 | 4900 | Price upon request | - | |
| MSBM-SERVO 2545 NC | 4135250 | 2545 | 1 | 4.5 | 2.5 | 6 | 4100 | 2300 | 5400 | Price upon request | - | |
| MSBM-SERVO 3240 NC | 4135320 | 3240 | 1 | 4 | 2.5 | 6 | 4700 | 2550 | 6700 | Price upon request | - | |
| MSBM-SERVO 4230 NCv | 4135420 | 4230 | 1 | 3 | 2 | 4 | 5700 | 2550 | 8050 | Price upon request | - | |
Select Attributes
General
- Max. working width
- VPE
Bending capacity
- 400N/mm²
- Stainless steel
- Aluminium
Dimensions and weights
- Length approx.
- Width/depth approx.
- Weight approx.
Price
- excl. Tax
- incl. 20% Tax
Productdetails
Standard equipment:
- Clamping cheek with eccentric drive for fast clamping and opening cycle.
- Large, clear upper beam opening with 220mm
- One narrow and one wide continuous bending bar included (10mm and 25mm)
- Manual sheet thickness adjustment of the bending beam
- Front safety area secured by light curtain
- 3-way foot pedal for one-man operation
- Servo-motorized back gauge with 1000mm travel range with flat, rotatable stop fingers - thus no grooves in the support table for impression-free bending
- Large, rectangular support table in the rear area with integrated transfer balls for easy material handling
- User-friendly 15.6" touchscreen NC control on ergonomic swivel arm
Options:
- Backgauge extensions with 1500, 2500, 3200 or 4200mm length
- Different support table geometries L-, T- or U-shape
- Omega geometry of the bending and lower beam for maximum flexibility in case of barrel plates due to more free space for the workpiece
- 2D or 3D graphic controls
- Fast, servo-motorized sheet thickness adjustment of the bending beam
- 90mm or 110mm high segmented goad foot tools in addition to the sharp bending rail
- Pneumatic upper die clamping of the segmented goad feet
- Centralized manual crowning system of the bending beam
- Motorized two-axis backgauge for inclined position
- Manual adjustment of the backgauge fingers for inclined position
- Second foot pedal for two-man operation
| Electrical Data | |
|---|---|
| Total input power | 16.9 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
