| Bending performance | |
|---|---|
| Max. pre-bending performance in steel 400 N/mm² | 3.0 mm |
| Max. bending performance in steel 400 N/mm²² | 4.0 mm |
| Max. taper bending performance in steel 400 N/mm² | 2.0 mm |
| Max. bending performance in stainless steel | 1.4 mm |
| Max. taper bending performance in stainless steel | 0.7 mm |
| Max. bending performance aluminium | 4.8 mm |
| Max. taper bending performance in aluminium | 2.4 mm |
| Min. bending diameter | 225 mm |
| Roller speed | 3.4 m/min |

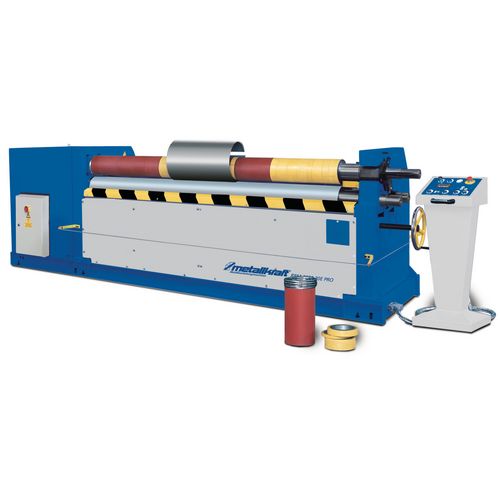

Motorized plate rolling machine
RBM 2550-40E Pro
In heavy design with motorized delivery for plate thicknesses up to 6 mm
29.450,00
EUR excl. Tax / pc(s).
35.340,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3813317
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy steel welded construction
- Upper and pinch roller driven
- Motorized delivery of the side roller

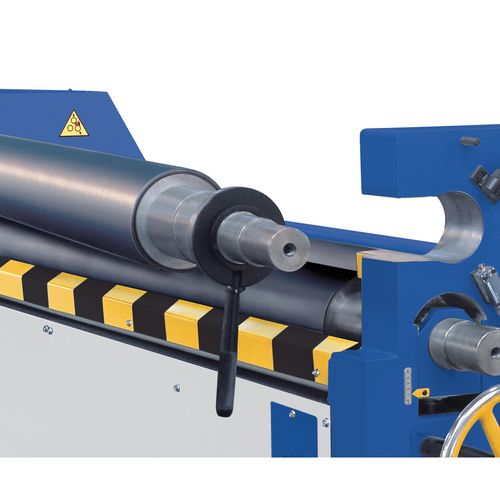

- Swing-out top roller
- Roller drive via powerful electric motor and gearbox
- Safety device Emergency line
- Mobile control panel
Room amenities:
- Swiveling top roller
Note:
- Please specify when ordering material to be processed!
- Other models on request
| Dimensions and weights | |
|---|---|
| Max. working width | 2550 mm |
| Top roller diameter | 150 mm |
| Length approx. | 4250 mm |
| Width/depth approx. | 650 mm |
| Height approx. | 1020 mm |
| Weight approx. | 2150 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 3,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
