| Bending performance | |
|---|---|
| Max. pre-bending performance in steel 400 N/mm² | 4/6 mm |
| Max. bending performance in steel 400 N/mm²² | 6/8 mm |
| Max. taper bending performance in steel 400 N/mm² | 3/4 mm |
| Max. bending performance in stainless steel | 4.5 / 6 mm |
| Max. taper bending performance in stainless steel | 2.2 / 3 mm |
| Max. bending performance aluminium | 7.2 / 9.6 mm |
| Max. taper bending performance in aluminium | 3.6 / 4.8 mm |
| Min. bending diameter | 410/1375 mm |
| Roller speed | 1,5 / 5 m/min |

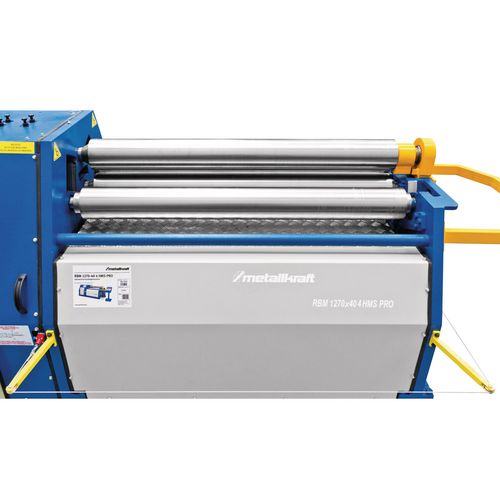

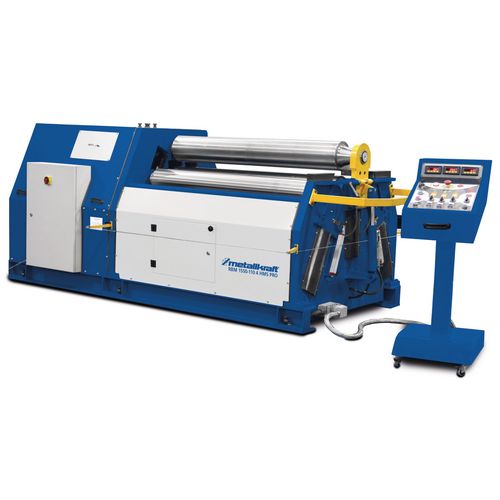

Hydraulic plate rolling machine
RBM 4 HMS PRO 4050-80
With four rollers
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3813361
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy-duty, robust welded construction

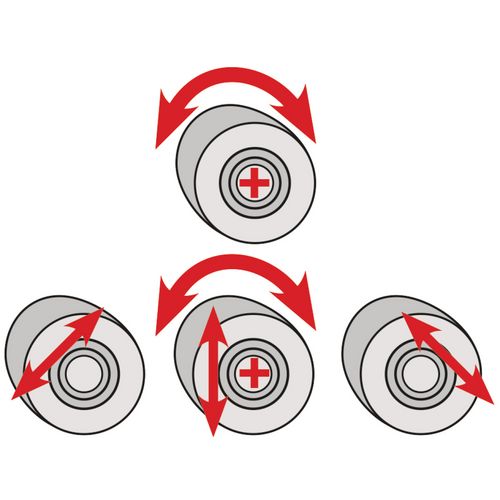

- Linear adjustment of side rollers and bottom roller via hydraulic cylinders
- Top roller driven by electric motor and planetary gearbox
- Bottom rollers driven via universal joint system
- Induction-hardened rollers – suitable for bending stainless steel

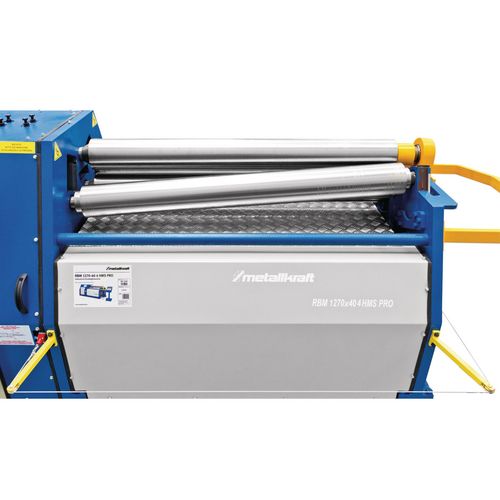

- Conical bending attachment
- Hydraulic balancing system to ensure roller parallelism
- Three digital displays for precise roller positioning (2 x side rollers, 1 x clamping roller)

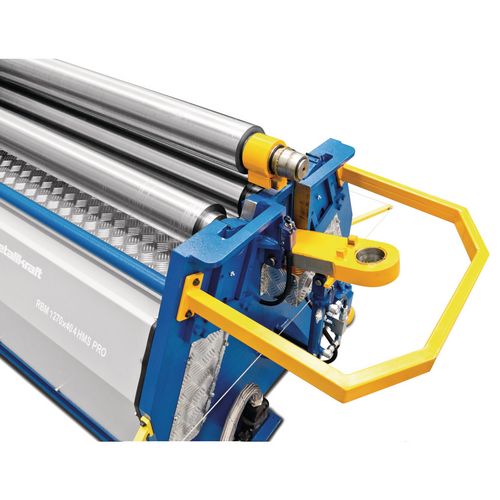

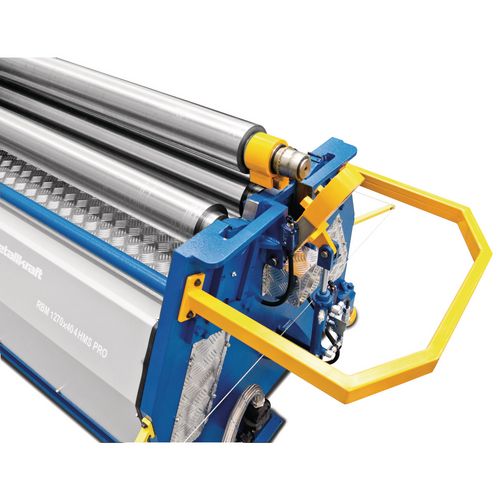

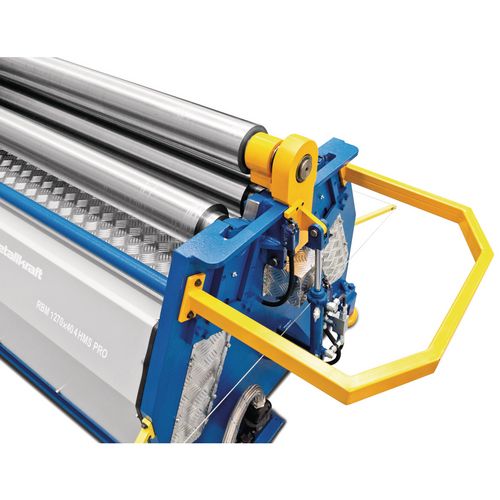

- Hydraulic drop-end bearing for easy removal of finished workpieces

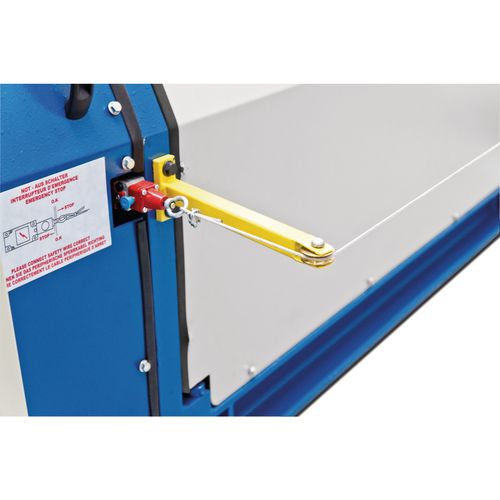

- Safety emergency stop cable
- Note: Please specify the type of material to be processed when ordering!
- Note: Additional models available upon request
| Dimensions and weights | |
|---|---|
| Max. working width | 4050 mm |
| Top roller diameter | 275 mm |
| Length approx. | 6400 mm |
| Width/depth approx. | 1600 mm |
| Height approx. | 1800 mm |
| Weight approx. | 9000 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 11 kW |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device |
| Data access | On the device |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
Dr.-Robert-Pfleger-Str. 26
96103 Hallstadt
Deutschland / Germany
info@stuermer-maschinen.de
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
Optional parts
Optional parts can not be retrofitted and are available only when ordering new machines.
