| Chamfer angle | 45 ° |
| Chamfer width at 45° | 0 – 3 mm |
| Speed(s) | 11000 min¯¹ |
| VPE | 1 |

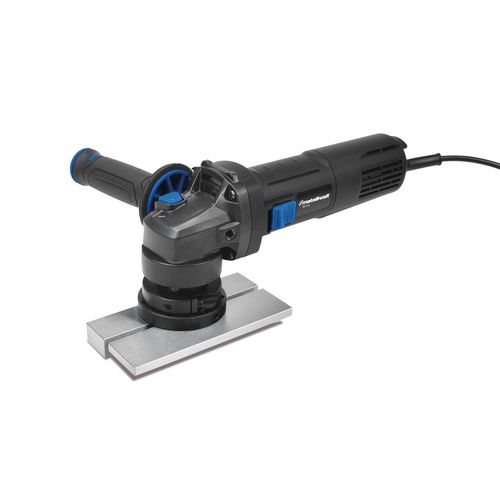

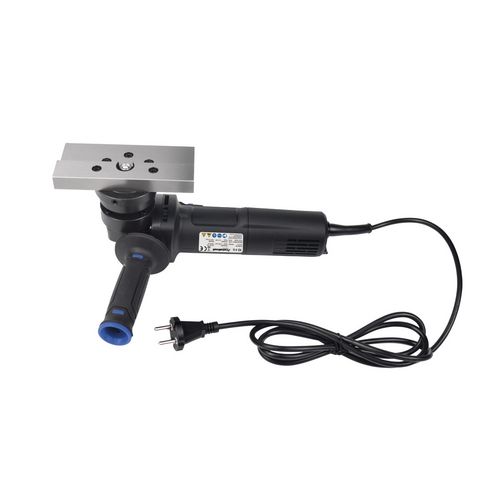

Edge deburrer
KE 4 G
Handheld edge deburrer for the precise deburring and chamfering of straight outer contours.
169,00
EUR excl. Tax / pc(s).
202,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3993005
Are you interested in this product?
Put a request
Find Trader
Productdetails

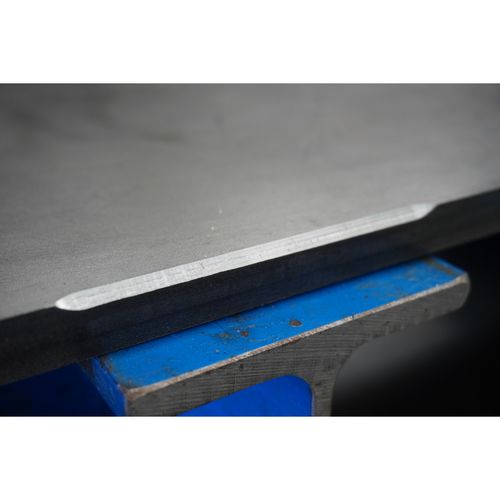

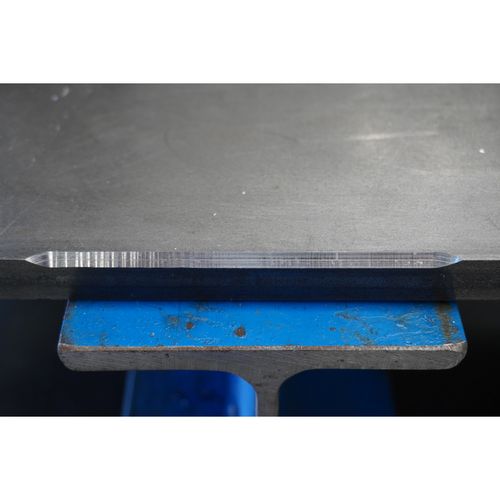

- Ideal for clean visible edges, high-quality surfaces, deburring and easy weld seam preparation
- Powerful and easy to use
- Chamfer height can be adjusted quickly and easily
- Ideal for straight outer contours
- Triple indexable insert holder for long service life and economical work
- Ideal for clean visible edges, high-quality surfaces, deburring and easy weld seam preparation
- Chamfer height easily adjustable
- Ideal for straight outer contours
- 3-fold indexable insert holder
| Dimensions and weights | |
|---|---|
| Length approx. | 400 mm |
| Width/depth approx. | 140 mm |
| Height approx. | 90 mm |
| Weight approx. | 4.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0,75 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| Noise emission | |
|---|---|
| Sound pressure level | 97 dB(A) |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 3-pocket indexable insert holder (45°)
- Insert set
- Side handle
- Tool for height adjustment and insert replacement
- Plastic carrying case with foam insert
