| Chamfer angle | 45 ° |
| Chamfer width at 45° | 0 – 5 mm |
| Speed(s) | 11000 min¯¹ |
| VPE | 1 |

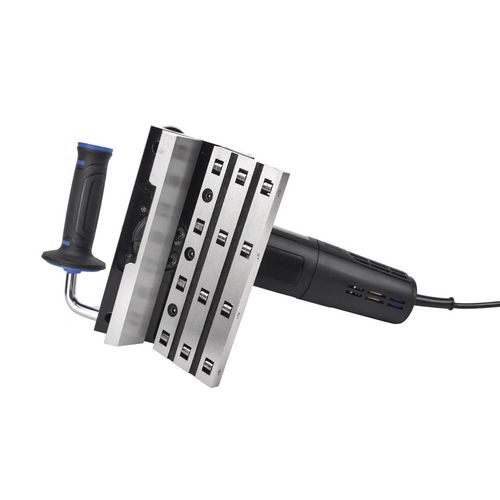

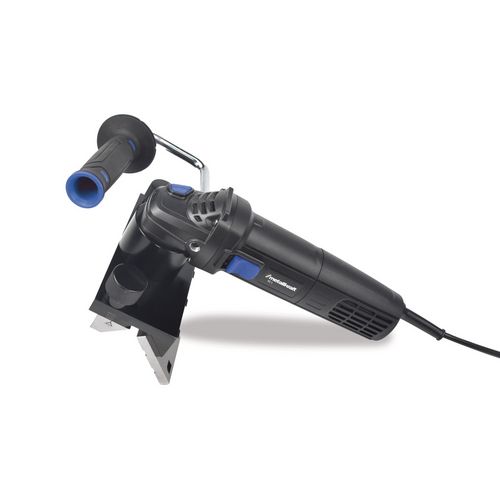

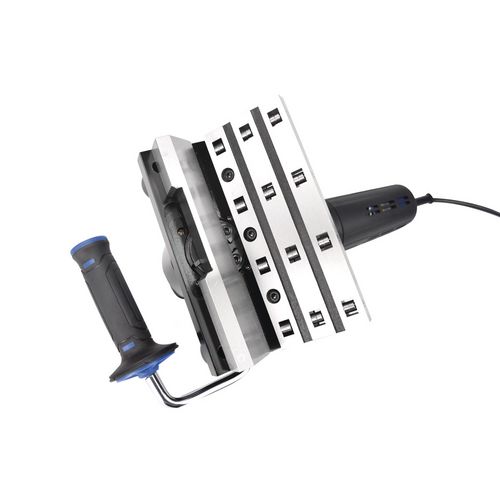

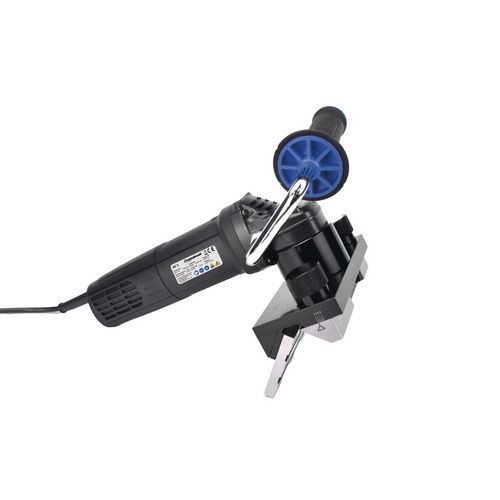

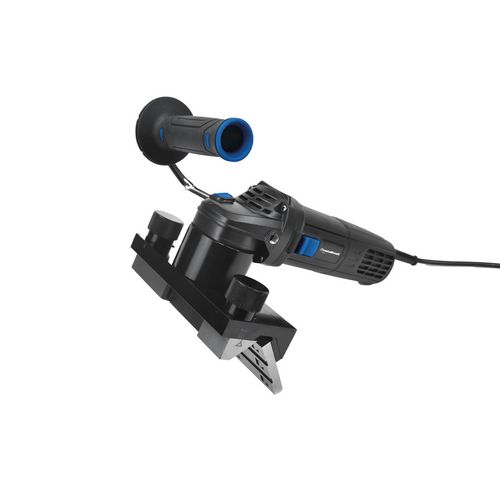

Edge deburrer
KE 5
359,00
EUR excl. Tax / pc(s).
430,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3993020
Are you interested in this product?
Put a request
Find Trader
Productdetails

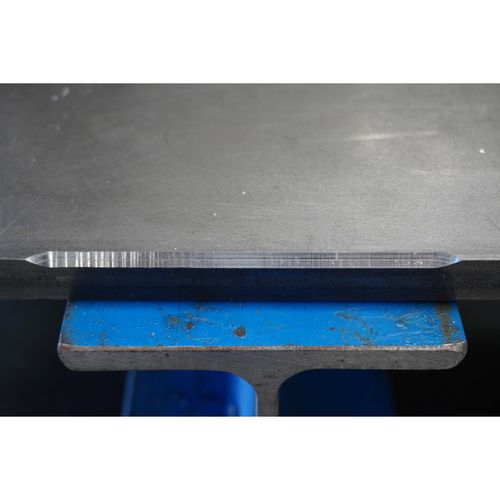

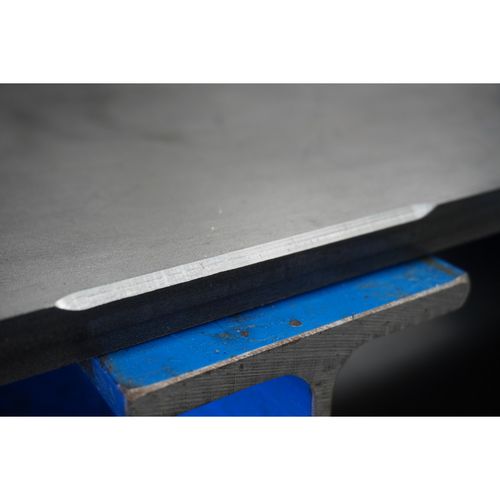

- Ideal for clean visible edges, high-quality surface finishes, deburring, and light weld seam preparation
- Powerful and easy to handle
- Bevel height adjustable quickly and without tools
- 4-sided indexable insert holder for long service life and cost-effective operation
- Controlled operation thanks to large guide plates
- Ideal for clean visible edges, high-quality surface finishes, deburring, and light weld seam preparation
- Bevel height adjustable quickly and without tools
- 4-sided indexable insert holder
- Controlled operation thanks to large guide plates
| Dimensions and weights | |
|---|---|
| Length approx. | 350 mm |
| Width/depth approx. | 220 mm |
| Height approx. | 170 mm |
| Weight approx. | 7 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Manufacturer infos | |
|---|---|
| Manufacturer | Stürmer Maschinen GmbH |
| Address | Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany |
| info@stuermer-maschinen.de | |
| Noise emission | |
|---|---|
| Sound pressure level | 97 dB(A) |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 4-position indexable insert holder (45°)
- Insert set
- Side handle
- Tool for height adjustment and insert replacement
- Plastic carrying case with foam insert
