    Brandimage to Product AS 4003 D

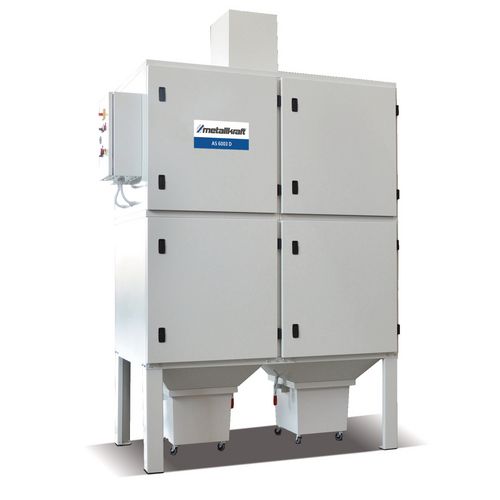

    Extraction device for metal grinding machines

    AS 4003 D

    with automatic filter cleaning

    10.199,00 EUR excl. Tax / pc(s).
    12.238,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 4420400

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Suitable for dry grinding machines
    • Separation of coarse particles in a prechamber
    • Filter material made of fine cellulose
    • Quick and easy filter change
    • Adjustment of the automatic filter cleaning via controls
    • Chip container with chassis for easy emptying



    • Suitable for dry grinding machines
    • Separation of coarse particles in a prechamber
    • Filter material made of fine cellulose
    • Quick and easy filter change
    • Chip container with chassis for easy emptying



    Dimensions and weights
    Extraction duct diameter300 mm
    Fan wheel diameter440 mm
    Length approx.900 mm
    Width/depth approx.900 mm
    Height approx.2430 mm
    Weight approx.370 kg
    Electrical Data
    Drive motor output4,0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Intake capacity
    with dust bag/hoses4000/4500 m³/h
    Noise emission
    Sound pressure level max.82 dB(A)
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Cellulose cartridge filter
