    1.545,00 EUR excl. Tax / pc(s).
    1.854,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3100116

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

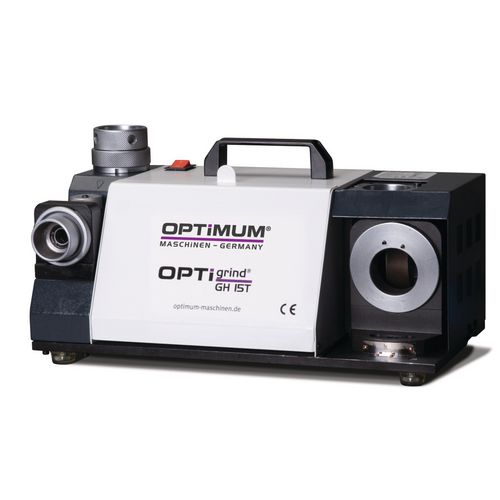

    • Easy to use for cost-effective sharpening of double-edged twist drills
    • Drill sharpening without prior knowledge – clean, fast and precise
    • Easy to transport
    • Grinding stone with a long service life for a perfect finish on HSS drills (high-speed steel)
    • Diamond grinding stone available as an option for carbide drill bits in the range of accessories.
    • Complete set of ER collets stored inside the machine



    Speed5000 min¯¹
    Grinding capacity drill diameter3 30 mm
    Tip sharpening angle90 145 °

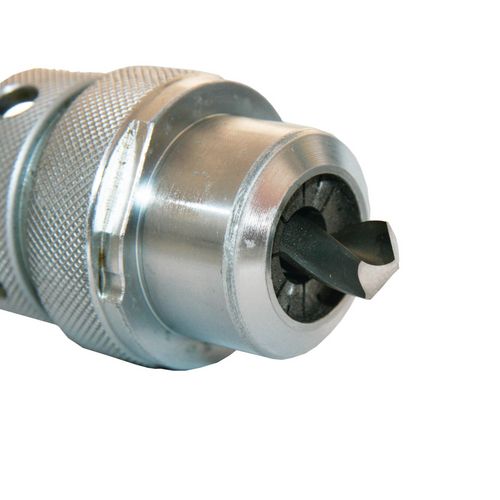

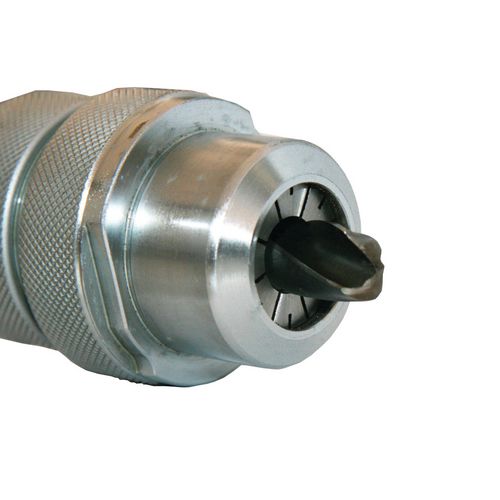

    Collet chuckER20 and ER 40 DIN 6499
    Grinding wheel materialSteel disc, coated with cubic boron nitride
    VPE1
    Dimensions and weights
    Length approx.450 mm
    Width/depth approx.240 mm
    Height approx.270 mm
    Weight approx.33 kg
    Electrical Data
    Drive motor output0.45 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Manufacturer infos
    ManufacturerOptimum Maschinen Germany GmbH
    AddressDr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
    E-Mailinfo@optimum-maschinen.de
    Unit: pc(s).
    Packaging unit: 1

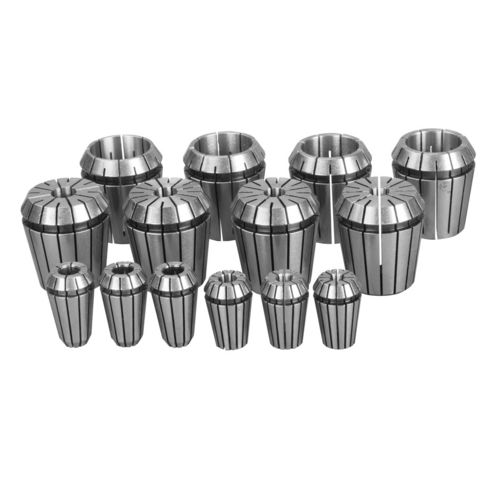

    • 6 ER 20 collets, sizes Ø 3 to Ø 8 mm
    • 22 ER 40 collets, sizes Ø 8 to Ø 30 mm



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
