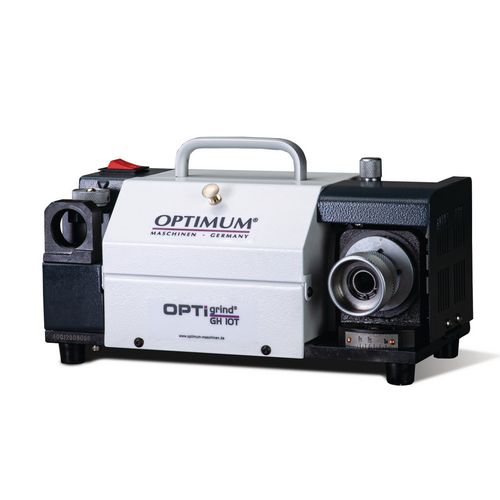

    Drill grinding machine

    OPTIgrind GH 10T

    The handy models - ideal for grinding twist drills

    595,00 EUR excl. Tax / pc(s).
    714,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3100111

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Easy to use for cost-effective sharpening of double-edged twist drills
    • Drill sharpening without prior knowledge – clean, fast and precise
    • Easy to transport
    • Grinding stone with a long service life for a perfect finish on HSS drills (high-speed steel)
    • Diamond grinding stone available as an option for carbide drill bits in the range of accessories.

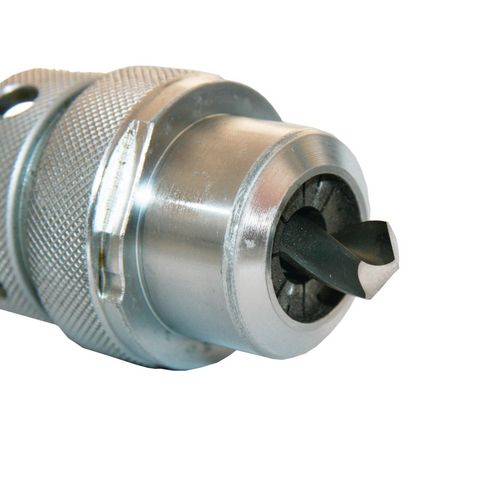

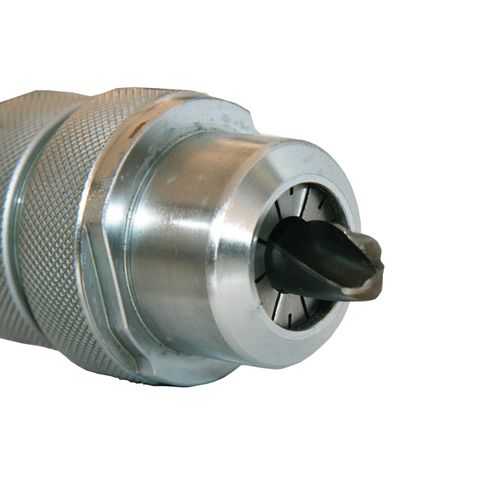

    • Complete set of ER collets stored inside the machine



    Speed5300 min¯¹
    Grinding capacity drill diameter2 13 mm
    Tip sharpening angle90 135 °
    Collet chuckER20 DIN 6499
    Grinding wheel materialSteel disc, coated with cubic boron nitride
    VPE1
    Dimensions and weights
    Length approx.310 mm
    Width/depth approx.180 mm
    Height approx.190 mm
    Weight approx.9.5 kg
    Electrical Data
    Drive motor output0.18 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Manufacturer infos
    ManufacturerOptimum Maschinen Germany GmbH
    AddressDr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
    E-Mailinfo@optimum-maschinen.de
    Unit: pc(s).
    Packaging unit: 1

    • 11 ER 20 collets, sizes Ø 2 to Ø 13 mm
