| Max. travel X-axis | 12500 mm |
| Max. travel Y-axis | 360 mm |
| Max. travel Z-axis | 360 mm |
| Max. travel speed | 80 m/min |
| Workpiece size round tube | 20 – 360 mm |
| Workpiece size square tube | 20 – 360 mm |
| Position accuracy | ± 0,05 mm/m |
| Max. machine table load | 1200 kg |
| Acceleration | 0.8 G |
| VPE | 1 |

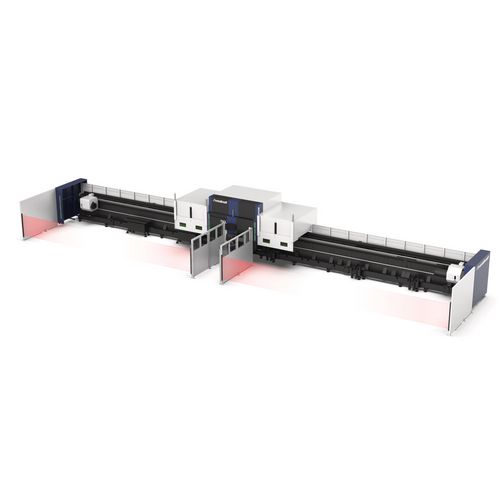

Laser cutting machine
TX3 6kW Raycus 7 m
Heavy-duty machine for heavy-duty use
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4660125
Are you interested in this product?
Put a request
Find Trader
Productdetails
- High-performance cutting center with three chucks that can be moved over the entire length enables maximum flexibility and full processing over the entire length - no more residual material required
- Extremely high workpiece weights (up to 1,200 kg) and large chuck diameter (360 mm) make it ideal for industrial steel and hall construction
- Designed for high production capacities
- Up to 9 m infeed and outfeed length
- Automatic loading and unloading system in segment conveyor design enables the simultaneous use of different profile shapes
- Fully cast machine bed ensures maximum stability and accuracy

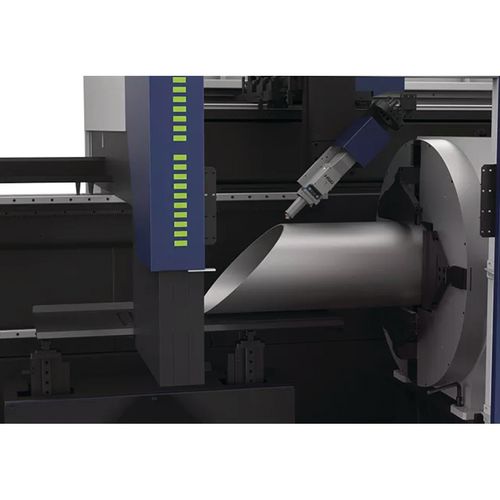

- 3D cutting head for angle and bevel cuts up to 45°
Technical features:
- High-performance tube laser cutting system for maximum output
- Suitable for all standard pipes, beams, rectangular profiles and flat steel up to a maximum diameter of 240 mm
- Many optional equipment options
- High-quality components from the market leaders in their industry
- Intelligent, high-precision cutting chucks regulate centering and clamping force fully automatically and ensure a trouble-free cutting process. Integrated measuring systems completely prevent incorrect loading.
- Control system: HSG X9000
- TubeNest™ nesting software from renowned manufacturer BOCHU®
- High-quality laser sources from the renowned manufacturer Raycus® ensure maximum beam quality and process reliability.
- L-shaped heavy-duty lathe bed for large and heavy pipes

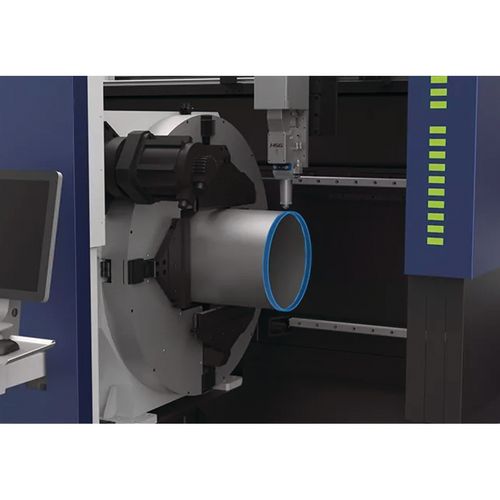

- Intelligent chuck for the production of pipes over the entire clamping range from 20mm to 360mm without retooling
- Automatic loading and unloading
- Heavy-duty, tubular support system
- Multi-chuck reversing movement
- Standard with nationally standardized profile grippers for angle steel, channel steel and H-steel
- For pipe connections with bevel cuts up to 45°
| Dimensions and weights | |
|---|---|
| Length approx. | 16950 mm |
| Width/depth approx. | 3300 mm |
| Height approx. | 3450 mm |
| Electrical Data | |
|---|---|
| Laser power | 6 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Product information EU 2023/2854 | |
|---|---|
| Type of the generated data | Usage data |
| Format of the generated data | Common, machine-readable formats such as JSON |
| Amount of data | Up to 5 MB |
| Continuous data generation in real time | Yes |
| Data storage location | On the device and a remote server |
| Data access | On the device and physical and wireless interfaces |
| Further information | In the operating instructions or at info@stuermer-maschinen.de |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
