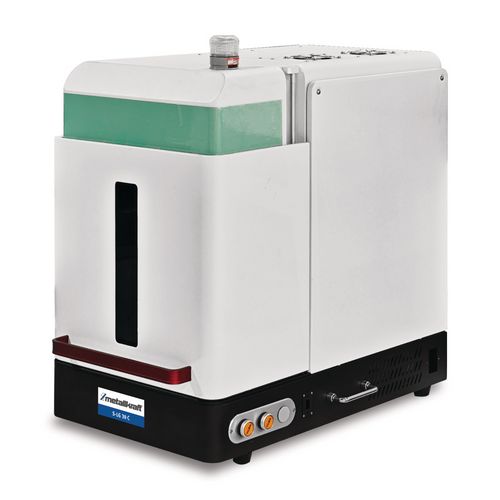

S-LG 30

Ideal for processing materials such as stainless steel, aluminum, titanium, plastics and ceramics

3.395,00 EUR excl. Tax / pc(s).
4.074,00 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 4700020

Are you interested in this product?

Put a request

Find Trader

Productdetails

Working area for engraving: 175 x 175 mm
Powerful 30-watt fiber laser for precise engraving and cutting
High engraving speed of up to 8,000 mm/s for efficient work processes
User-friendly software for uncomplicated operation
Compact and space-saving design, perfect for integration into existing work environments
Non-contact engraving technology reduces physical wear and tear
Guarantees consistently high-quality results, even in mass production
Expandable with accessories such as rotary axes for processing cylindrical objects
Compatible with EZCAD and LightBurn software solutions

Working area for engraving: 175 x 175 mm
Powerful 30-watt fiber laser for precise engraving and cutting
High engraving speed of up to 8,000 mm/s for efficient work processes
Compact and space-saving design
Non-contact engraving technology
Consistently high-quality results

Laser head length	118.5 mm
Laser head wide	96.5 mm
Laser head height	93.6 mm
Laser Wave length	1064 nm
Output power	≥30 W
Engraving area	175 x 175 mm
Exterior material	copper wire
Document transfer	RS232, TCP/IP
Supported Document Formats	ai, plt, dxf, dst, svg, nc, g, gbr, bmp, jpg, jpeg, gif, tga, png, tif, tiff
Connection	USB
Operating system	Windows 7, Windows 10
Working temperature	5 – 43 °C
Working Humidity	5 – 75 %
Explanation Humidity	No condensation
Safety certification	CE
Engraving Accuracy	0.002 mm
Max. operating speed	8000 mm/s
Software	EZCAD or LightBurn
VPE	1

Dimensions and weights
Length approx.	550 mm
Width/depth approx.	570 mm
Height approx.	605 mm
Weight approx.	54 kg

Electrical Data
Supply voltage	230 V
Mains frequency	50 Hz


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1
