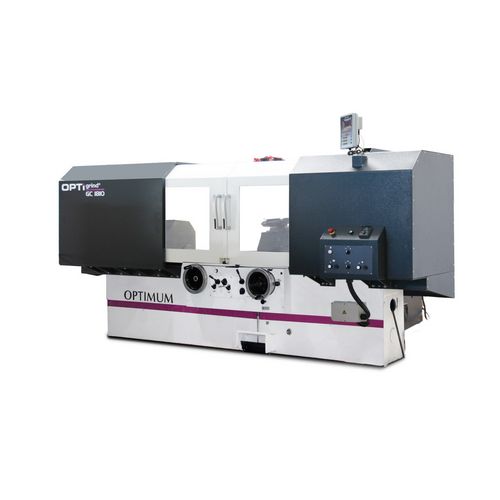

    Cylindrical grinding machine

    OPTIgrind GC 1810

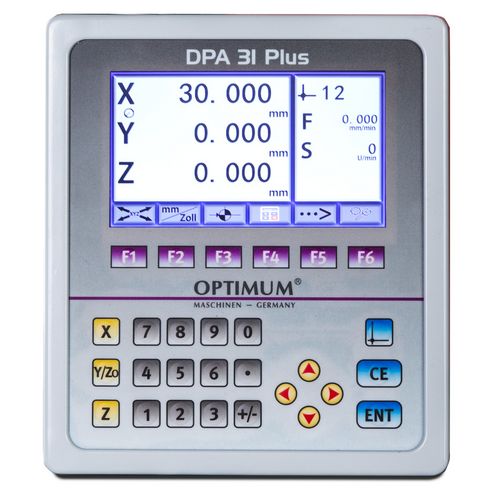

    High-precision universal cylindrical grinding machine with automatic feed and digital position display: DPA 31Plus

    46.900,00 EUR excl. Tax / pc(s).
    56.280,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 3121050

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy, one-piece, heavily ribbed and wide machine bed
    • Induction-hardened and ground guideways
    • Solid headstock with high-precision, tapered roller-bearing main spindle, offering outstanding stability under load
    • Smooth running at maximum spindle speed</ li>
    • All gear wheels are generously dimensioned, hardened and ground

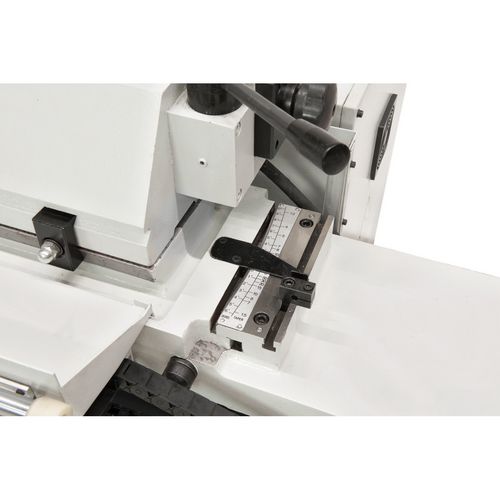

    • The table can be rotated for conical grinding operations – the scale allows precise adjustment to the desired position
    • The table’s longitudinal guide and the grinding headstock’s cross guide are each fitted with V- and flat guides</ li>
    • Rotatable grinding head for internal machining
    • The workpiece, external and internal grinding wheels, as well as the hydraulic and coolant pumps, are driven individually
    • The hydraulic tailstock is characterised by maximum accuracy and rigidity
    • The foot pedal allows the tailstock to be controlled during loading



    Tip height180 mm
    Work table travel max.1090 mm
    Grinding length1000 mm
    Grinding diameter without steady rest8 320 mm
    Grinding diameter with steady rest8 60 mm
    VPE1
    Dimensions and weights
    Length approx.3610 mm
    Width/depth approx.1810 mm
    Height approx.1550 mm
    Weight approx.3700 kg
    Electrical Data
    Drive motor output9 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Manufacturer infos
    ManufacturerOptimum Maschinen Germany GmbH
    AddressDr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
    E-Mailinfo@optimum-maschinen.de
    Product information EU 2023/2854
    Type of the generated dataUsage data
    Format of the generated dataCommon, machine-readable formats such as JSON
    Amount of dataUp to 5 MB
    Continuous data generation in real timeYes
    Data storage locationOn the device
    Data accessVia physical interfaces
    Further informationIn the operating instructions or at info@stuermer-maschinen.de
    Unit: pc(s).
    Packaging unit: 1
