| Device data | |
|---|---|
| Pulse rate | 0.5 - 999 Hz |
| Ignition | high frequency |
| Torch cooling | gas |

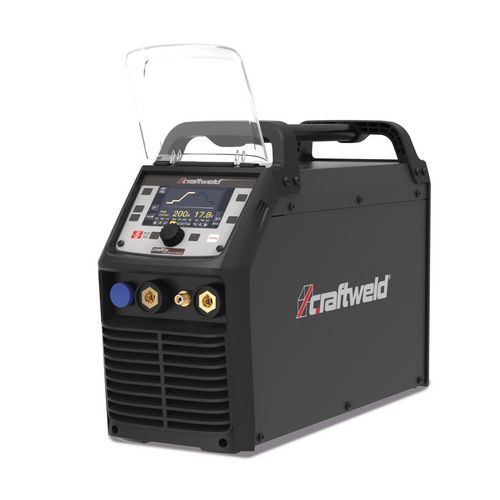

TIG inverter
CRAFT-TIG PRO 253 DC Pulse
Welding equipment for the highest demands, always the right wave for your task
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1364253
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Built in modern inverter technology
- Universally applicable for welding all common types of electrodes
- Ideally suited for assembly work due to protection class IP 21S generally also for outdoor work
- Suitable for use on the generator, for example in workshops, schools, metal construction, on building sites or for farmers
- Quiet running fan with good heat dissipation for high switch-on times

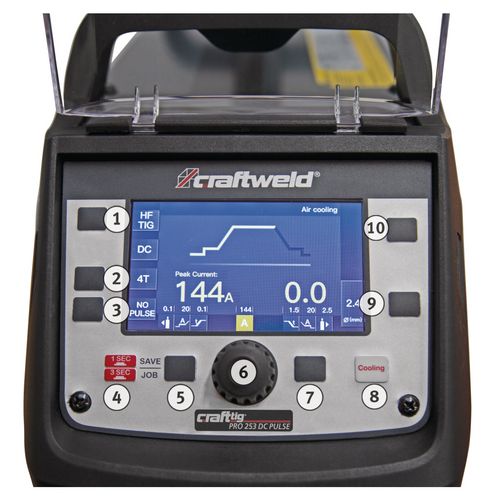

- Precise setting and display of welding parameters via large LC display
- TIG pulsing with 999 Hz enables welding with reduced heat input
- HF high frequency ignition ignites during TIG welding without touching the workpiece
- Equipped with tacking function 0.2 seconds
- Nine programs can be stored
- Tungsten electrode diameter adjustable
| Dimensions and weights | |
|---|---|
| Length approx. | 545,5 mm |
| Width/depth approx. | 190 mm |
| Height approx. | 360 mm |
| Weight approx. | 17.1 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 60 % |
| at Imax. 40°C electrode | 60 % |
| Current at 100% DC 40°C TIG DC | 195 A |
| Current at 100% DC 40°C electrode | 195 A |
| Electrical Data | |
|---|---|
| Total output | 12.5/9.1 kVA |
| Input current TIG DC | 13.1 A |
| Current consumption electrode DC | 18 A |
| Supply voltage | 400 V |
| Mains frequency | 50/60 Hz |
| Power consumption | |
|---|---|
| TIG DC | 6 kVA |
| Electrode | 8.5 kVA |
| Setting range | |
|---|---|
| TIG DC | 5 – 250 A |
| Electrode | 5 – 250 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012, EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Ground cable 25 mm² 4 m with 300 A clamp
- TIG torch SR26, 4 m
- Gas hose 12 x 6 mm, 4 m
- Pressure reducer large
| Process MMA | ✔ |
| Process TIG pulsing | ✔ |
| LC display | 4 " |
| Single Spot | ✔ |
| Multi Spot | ✔ |
| Water cooling connection | ✔ |
