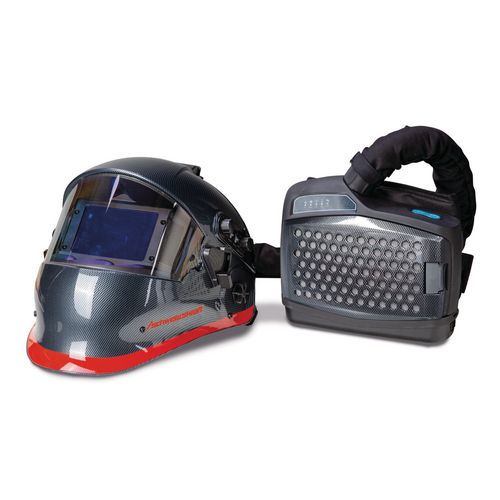

Automatic welding helmet
VarioProtect XXL-W F-TC AIR
Welding in true colours and with clean breathing air
629,00
EUR excl. Tax / pc(s).
754,80 EUR incl. 20% Tax / pc(s).
754,80 EUR incl. 20% Tax / pc(s).
Promotional price *
559,00 EUR excl. Tax / pc(s).670,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 1654105
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for electrode, MIG/MAG and TIG welding and for grinding
- Welding in true colors thanks to True Color Cassette
- Flip-Up System: cassette is folded up in the helmet, e.g. to be able to look directly through the clear protective disk when grinding
- Highly efficient air filtering and air supply system supplies the welder with clean and filtered air and thus prevents the inhalation of dangerous and harmful particles and welding fumes
- Two ventilation levels selectable
- Even air distribution in the helmet
- Li-ION battery with up to 10 hours of runtime
- Easy operation, even with welding gloves
- Large field of vision
- Top marks in the evaluation of the optical class, scattering class, homogeneity class and class of the angular properties
- Welding mask with center of gravity at the back, very light, gentle on the head and neck
- Suitable for electrode, MIG/MAG and TIG welding and grinding
- Flip-up system: cassette can be folded up inside the helmet
- Highly efficient air filtration and air supply system
| Blower breathing protection | |
|---|---|
| Air flow stage 1 | 180 l/min |
| Air flow stage 2 | 220 l/min |
| Filter battery operating time level 1 | 10 h |
| Filter battery operating time level 2 | 9 h |
| Dimensions and weights | |
|---|---|
| Explanation about Weight | Welding helmet and blower breathing protection |
| Length approx. | 194 mm |
| Width/depth approx. | 245 mm |
| Height approx. | 334 mm |
| Weight approx. | 2600 g |
| Filter cassette | |
|---|---|
| Switch-over response time | 0.3 ms |
| Brightening time | 300 – 900 ms |
| UV/IR protection | Protection level 16 (permanent) |
| Shade | Protection level 4 |
| Solar cells | ✔ |
| Battery type | Lithium battery (CR2450) |
| Battery replaceble | ✔ |
| Number of sensors | 4 |
| Viewing window width | 100 mm |
| Viewing window height | 65 mm |
| Cassette length | 133 mm |
| Cassette width | 122 mm |
| Cassette height | 8 mm |
| Mask | |
|---|---|
| Mask material | Polyamide |
| Standards and certifications | |
|---|---|
| Class | 1/1/1/1 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Welding helmet
- Air filter system
- Rechargeable Li-ion battery 14,8V / 2,6 Ah
- Battery charger
- Breathing tube with cover 1 m
- Hip belt and double shoulder strap
- Black carrying case
