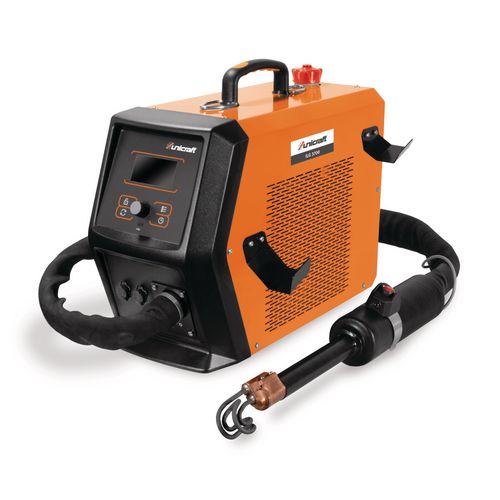

    Induction soldering device

    ILG 3700

    Mobile, fast and safe soldering

    5.729,00 EUR excl. Tax / pc(s).
    6.874,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 6401037

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Portable induction soldering device for hard and soft soldering
    • Perfectly suited for heating and pipework construction
    • Thanks to its 230 V mains connection and compact dimensions, it is suitable for use in production as well as for mobile use at the customer's premises.
    • The precise setting of all parameters ensures a high level of reproducibility of the soldering process and also enables use in production plants

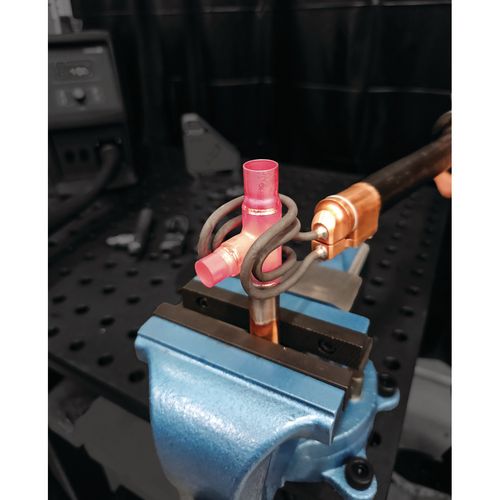

    • Modern process for joining metal materials through targeted heating
    • Fast and contactless energy transfer, the ideal solution for industrial applications and demanding workshop work
    • Optimized for heating copper, brass and aluminium
    • Even heating without overheating the surrounding parts
    • Localized effect, heating is concentrated only on the joint area without affecting surrounding materials or sensitive components
    • Precise temperature control minimizes the occurrence of defects (overheating, poor wetting) and ensures strong and reliable solder joints



    • Portable induction soldering device for hard and soft soldering
    • Perfectly suited for heating and pipework construction
    • Suitable for use in production as well as for mobile use at the customer's premises
    • Modern process for joining metal materials through targeted heating
    • Optimized for heating copper, brass and aluminium



    Output frequency60 150 kHz
    Degree of protectionIP 20
    Material thickness max.28 mm
    Coolant volume3 l
    VPE1
    Dimensions and weights
    Induction burner cable length2.5 m
    Length approx.395 mm
    Width/depth approx.500 mm
    Height approx.220 mm
    Weight approx.24.3 kg
    Electrical Data
    Fuse protection16 A
    Absorption capacity3.7 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • U-profile coil 16 mm



    Inductor coolingcoolant
    Stepless power controlYes
    TimerYes
    Connection cable length3 m
