| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 610 mm |
| Max. cross cut width left from saw blade | 550 mm |
| Saw blade angle | -45 90 ° |
| Max. cutting height 90° | 80 mm |
| Max. cutting height -45° | 56 mm |
| (Main) saw blade diameter | 254 mm |
| (Main) saw blade speed | 4000 min¯¹ |
Table saw

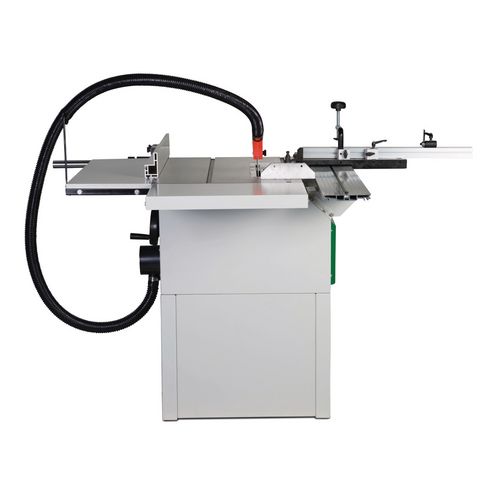

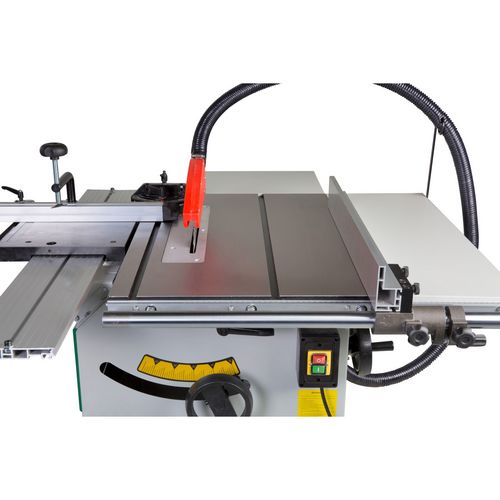

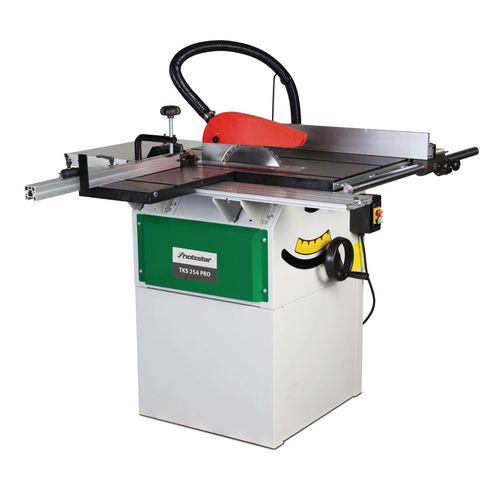

TKS 254 PRO (400 V)
Fixed machine with heavy base and maximum cutting depth 80 mm.
1.329,00
EUR excl. Tax / pc(s).
1.594,80 EUR incl. 20% Tax / pc(s).
1.594,80 EUR incl. 20% Tax / pc(s).
Promotional price *
1.029,00 EUR excl. Tax / pc(s).1.234,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2026 in Germany.
Art.-No. 5902028
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Large cast iron table
- Stable suspension of the saw unit

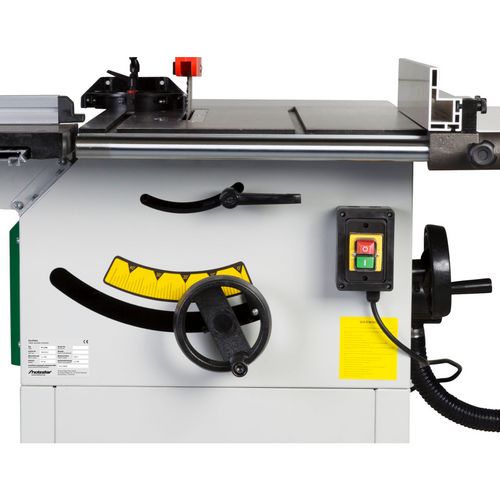

- Saw blade height adjustment via handwheel from the operator front
- Equipped with a powerful motor and thermal overload protection

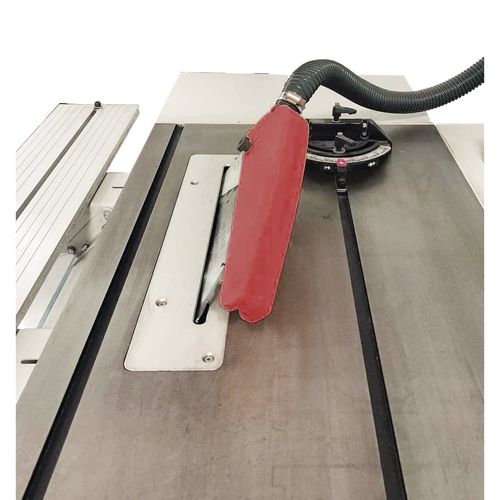

- Integrated extraction connection on the saw blade guard
- Table extension as standard

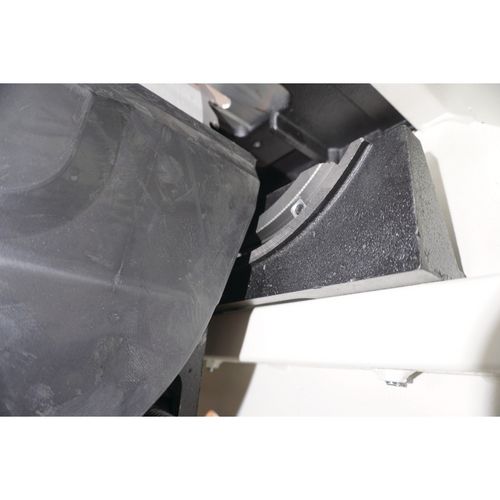

- Cast iron suspension of the saw unit
- The solid construction ensures particularly high stability and vibration damping
- Saw blade inclination 45° degrees to the right
- Accurate blade tilting from 0° to 45°
- High cutting precision and stability through massive substructure
| Dimensions and weights | |
|---|---|
| Length approx. | 1100 mm |
| Width/depth approx. | 1090 mm |
| Height approx. | 870 mm |
| Weight approx. | 132 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 2,0 kW |
| Total output | 2,1 kW |
| Total rated value | 3,5 A |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 100 mm |
| Saw blade protection extraction port diameter | 30 mm |
| Noise emission | |
|---|---|
| Sound pressure level | 83 dB(A) |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 400 mm |
| Sliding carriage width | 250 mm |
| Table length | 720 mm |
| Table width | 480 mm |
| Work height | 830 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Substructure
- Sliding table
- Table extension
- Rip fence
- Saw blade 254 x 30 x 3.0 mm Z40
- Saw blade guard with suction hose

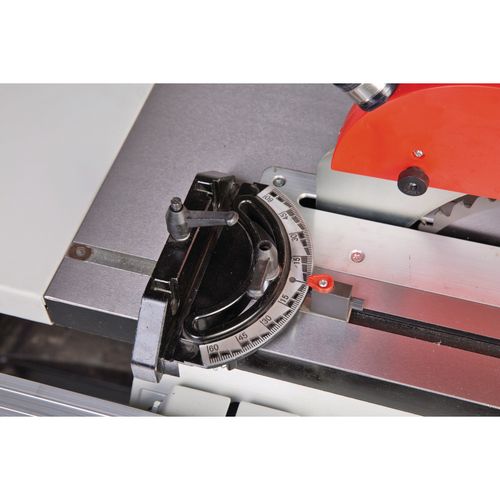

- Angle stop
