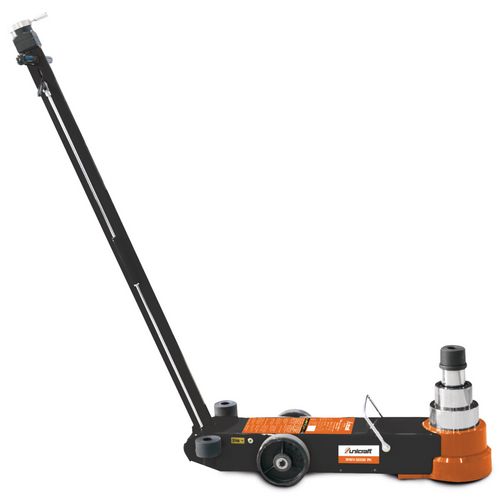

    Trolley jack

    WWH 60000 PH

    Pneumatic-hydraulic special version for workshop use

    1.699,00 EUR excl. Tax / pc(s).
    2.038,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    1.699,00 EUR excl. Tax / pc(s).
    2.038,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2026 in Germany.

    Art.-No. 6201112

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Controlled, safe lifting and lowering
    • For operation with compressed air from an external producer
    • Hard chromed pistons with extra smooth surface
    • Compact design
    • With sturdy cast iron and PU-coated castors

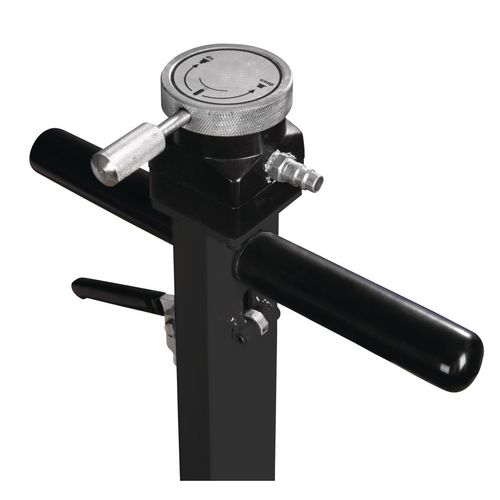

    • T-handle for easy maneuvering
    • With practical carrying handle on the housing
    • The two cast iron attachment pieces can be used individually for the extension of the lifting height or even plugged on each other





    3-stage version



    Load capacity60 t
    Explanation Load capacityLoad capacity is 20, 40 or 60 t depending on the lifting height
    Lifting height312 / 256 / 207 mm
    Explanations of final height(s)without attachments
    Height of top sections45 / 75 mm
    Min. clearance150 mm
    Operating pressure8 – 12 bar
    Air consumption97 l/stroke
    VPE1
    Dimensions and weights
    Length approx.875 mm
    Width/depth approx.295 mm
    Height approx.1530 mm
    Weight approx.64 kg
    Manufacturer infos
    ManufacturerStürmer Maschinen GmbH
    AddressDr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
    E-Mailinfo@stuermer-maschinen.de
    Unit: pc(s).
    Packaging unit: 1

    • Cast iron attachment, 45 mm
    • Cast iron attachment piece, 75 mm
