Brandimage to Product HBS 840 AS

Woodbandsaw

HBS 840 AS

Precision version for the professional with high cutting performance and many equipment options

8.850,00 EUR excl. Tax / pc(s).
10.620,00 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5152184

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Heavy design with high dead weight for maximum running smoothness
    • Particularly quiet and pretorsionally stiff machine housing

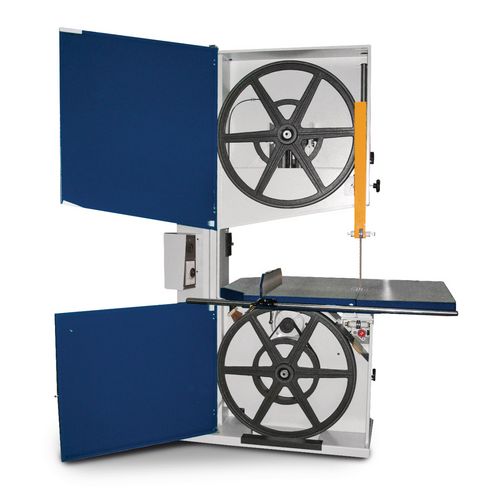

    • Cast flywheels with rubber coating and cleaning brush

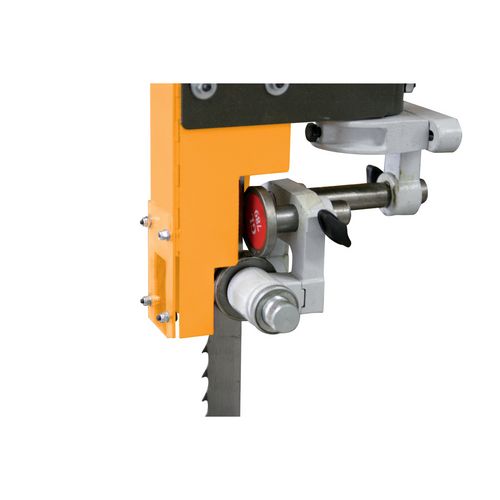

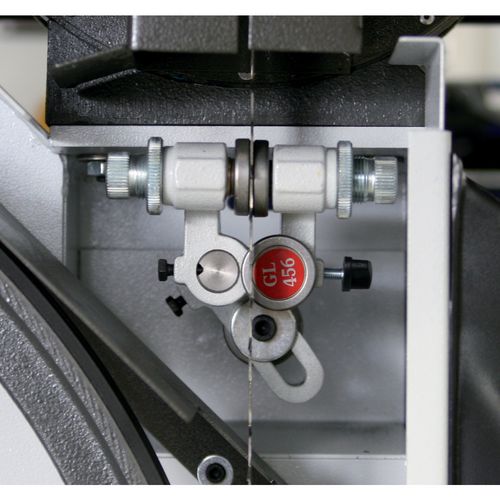

    • 3-roller precision saw band guide as standard at top and bottom
    • Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
    • Large cast-iron parallel fence with round rod guide, easilyguide, easily movable

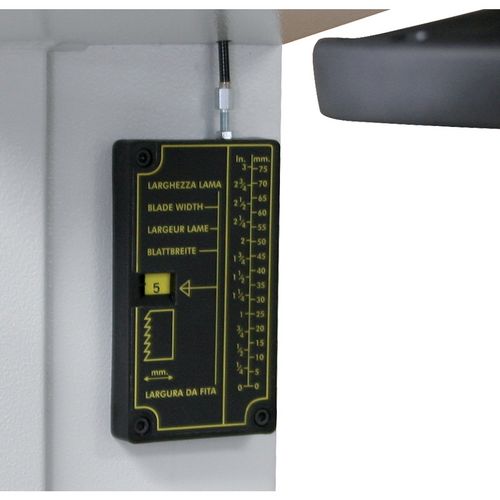

    • Saw blade tension indicator
    • Precise cutting height adjustment overover toothed rack with millimetre scale
    • Self-braking motor

    Available on request

    • Version with cutting height up to 1650 mm
    • Other special versions

    Table, motor and switch must be mounted on siteTable, motor and switch must be mounted on site



    • Heavy design with high dead weight for maximum running smoothness
    • Cast iron flywheelswith rubber coating and cleaning brush
    • 3 roller precision saw band guide as standard.ig above and below
    • Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
    • Precise cutting height adjustment via toothed rack with millimetre scale



    Cutting ranges
    Max. cutting height 90°540 mm
    Max. cutting width820 mm
    Dimensions and weights
    Length approx.1410 mm
    Width/depth approx.920 mm
    Height approx.2650 mm
    Weight approx.730 kg
    Electrical Data
    Delivery power5.5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 140 mm
    Saw band
    Speed(s)1630 m/min
    Length6090 mm
    Strength0.7 - 0.8 mm
    Work top(s)
    Length1160 mm
    Width800 mm
    Height1020 mm
    Pivot0 – 20 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1
