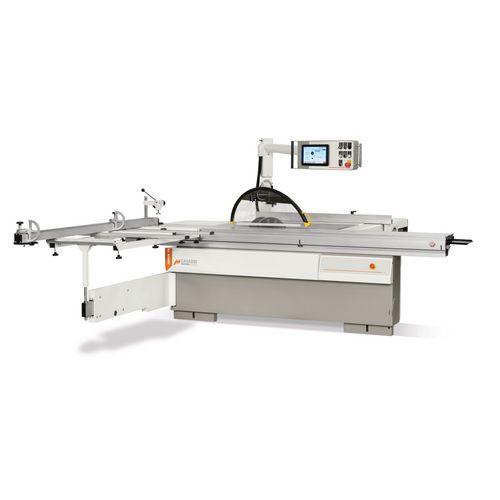

CASADEI XENIA 70/38 A

with 450 mm saw blade as standard, adaptable to specific applications through modular equipment options

26.390,00 EUR excl. Tax / pc(s).
31.668,00 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5223507

Are you interested in this product?

Put a request

Find Trader

Productdetails

Sturdy cast steel construction
Three speeds as standard

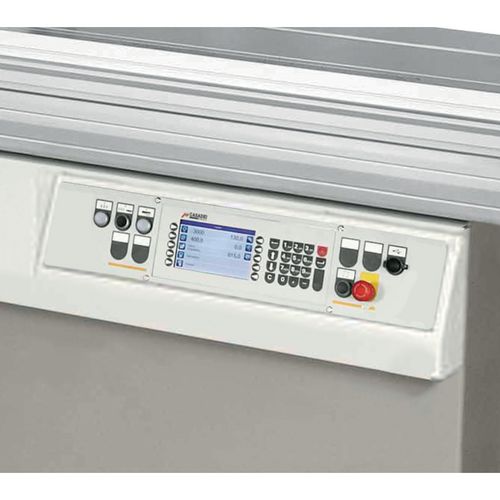

Standard NC control with 7 inch LC display for setting all axes of the machine

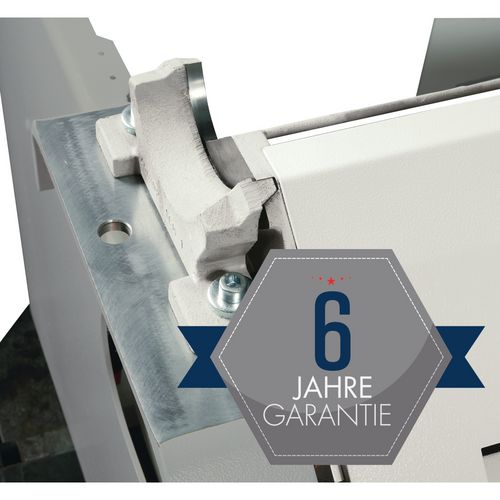

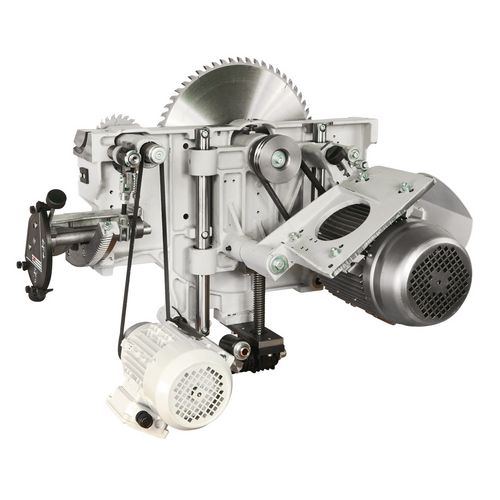

Saw unit with permanently precise double tilting segment guide, 6 years Holzkraft warranty on wear of the tilting segments
Electrical positioning of cutting height and saw blade tilting
scoring unit with separate scoring motor
Powerful industrial motors

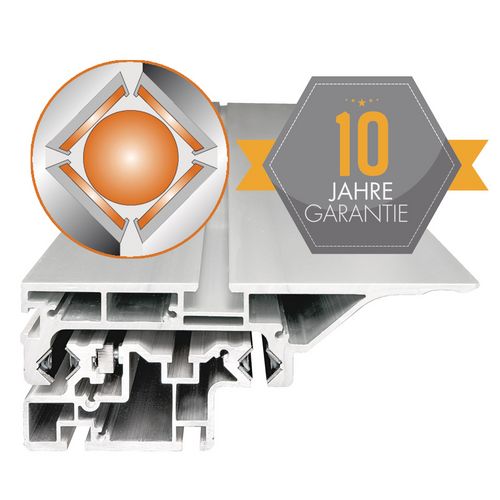

Smooth-running and precise sliding table made of anodized aluminium with proven and permanently smooth-running ball contact system on hardened, 10-year warranty on wear of the guideways
Large support surfaces due to standard table extension and widening
Cast iron saw table
Foldable rip fence with fine adjustment and round bar guide
Crosscut fence, extendable up to 3200 mm, with two folding stops and eccentric clamp
Extra large extension arm with material roller, extendable up to 2400 mm
Sideways swivelling saw blade pendulum protection with integrated suction socket
Optionally available: extendable mitre fences up to 1500 mm for mounting directly on the sliding carriage
Numerous equipment options for individual adaptation

Circular saw unit
Max. cutting width with rip fence	1500 mm
Max. cross cut width left from saw blade	3800 mm
Saw blade angle	90 45 °
Max. cutting height 90°	150 mm
Max. cutting height 45°	106 mm
(Main) saw blade diameter	450 mm
(Main) saw blade speed	2500 - 3500 - 5000 min¯¹

Dimensions and weights
Weight approx.	1000 kg

Electrical Data
Scoring blade motor output	0,9 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter bottom	120 mm
Saw blade protection extraction port diameter	100 mm

Manufacturer infos
Manufacturer	SCM Group S.p.A.
Address	Via del Lavoro 1/3-Po box 168, 36016 Thiene-Vicenza, Italy
E-Mail	www.scmgroup.com

Pre-scoring unit
Diameter scoring saw blade	120 mm
Scoring saw blade speed	8500 min¯¹

Sliding carriage and table
Trimming frame length	3800 mm
Sliding carriage length	3820 mm
Sliding carriage width	360 mm
Table length	1285 mm
Table width	700 mm
Work height	900 mm

VPE


Sicherheits- und Warnhinweise
Safety and warning notices

Unit: pc(s).
Packaging unit: 1

Parallelogram blade guard
Boom with roll of material
Crosscut with 2 hinged stops
Saw-rip fence, hinged
Sliding length 3800 mm
table extension
edging shoe
eccentric clamping
Handle for sliding carriage
Scoring unit
Table extension at the workpiece exit
Telescopic arm for format cuts with fast release device
Miter stop for attachment to the rolling table

Scoring saw unit	✔
Anodised aluminium sliding sizing carriage	✔
Handle for sliding carriage	✔
Material roll on claming frame	✔
Saw rip fence	with round rod guide, can be swivelled away
Stops	2 Professional folding stops
Clamp sleigh	✔
Eccentric clamp	✔
Table broadening	✔
Table lengthening	✔
Saw blade pendulum protection	with quick release device
