Brandimage to Product TKS 316 Pro (400 V)

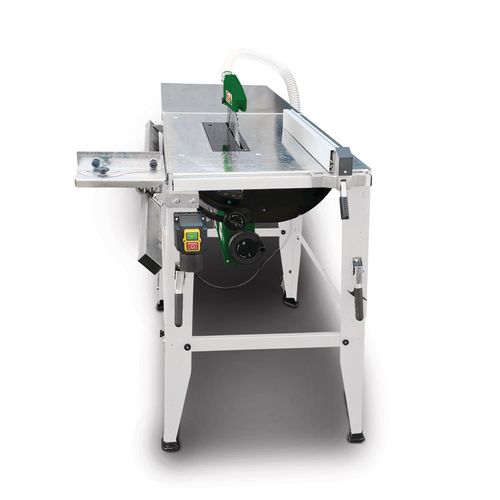

Table saw

TKS 316 Pro (400 V)

Stable circular saw for precise work

629,00 EUR excl. Tax / pc(s).
754,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5902323

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Large machine table made of galvanized steel
    • Standard table extension can also be mounted as table widening right
    • Precise sawmill swing over hand wheel with scale
    • Saw blade height adjustable via easy-to-reach hand wheel
    • Precise cuts due to stable, double suspension of the sawing unit
    • Rip fence allows the lining of boards, thicknaces, fiber and angle cuts
    • Easily drivable through integrated landing gear and foldable transport handles
    • For easy transport or space-saving storage table feet can be folded easily



    • High stability for precise cuts
    • Precision saw blade tilting up to 45 °
    • Parallel and miter gauge included
    • Chassis with two wheels and handles



    Circular saw unit
    Max. cutting width with rip fence200 mm
    Max. cross cut width left from saw blade245 mm
    Saw blade angle90 – 45 °
    Max. cutting height 90°90 mm
    Max. cutting height 45°50
    Max. cutting height -45°50 mm
    (Main) saw blade diameter315 mm
    (Main) saw blade speed2800 min¯¹
    Dimensions and weights
    Length approx.1350 mm
    Width/depth approx.1250 mm
    Height approx.1000 mm
    Weight approx.60 kg
    Electrical Data
    Absorbed power drive motor2,8 kW
    Total rated value5.4 A
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter bottom100 mm
    Saw blade protection extraction port diameter30 mm
    Sliding carriage and table
    Table length800 mm
    Table width550 mm
    Work height850 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Chassis
    • Sliding sleighs
    • Table extension tat, 800 x 550 mm
    • Rip fence
    • HM saw blade 315 mm/36 Z
    • Saw blade cover with suction hose
    • Miter fence without aluminium profile (profile available as accessories)



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
