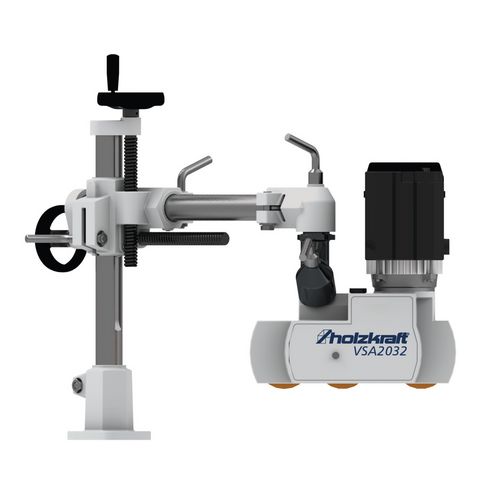

VSA 2032

with three rollers and four speeds

625,00 EUR excl. Tax / pc(s).
750,00 EUR incl. 20% Tax / pc(s).

Promotional price *

579,00 EUR excl. Tax / pc(s).
694,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.

Sicherheitsdatenblatt

Art.-No. 5119032

Are you interested in this product?

Put a request

Find Trader

Productdetails

Uniform feed rate without loss of force
Right and left rotation
Tripod included, individually swiveling and adjustable for horizontal and vertical use
Four speeds possible, speed selection via switch and change gears

Uniform feed rate without loss of force
Right and left rotation
Tripod included, individually swiveling and adjustable for horizontal and vertical use
Four speeds possible, speed selection via switch and change gears

Data sheets
Sicherheitsdatenblatt

Number of feed rollers	3 St
Feed speed	4 / 8 / 9 / 18 m/min
Gears	4
Max. extension	660 mm
Roller diameter	80 mm
Roller width	28 mm
Spring stroke of rollers	15 mm
VPE	1

Dimensions and weights
Length approx.	1222 mm
Width/depth approx.	152 mm
Height approx.	566 mm
Weight approx.	32.5 kg
Explanation Weight approx.	Tripod included

Electrical Data
Drive motor output	0.18 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1
