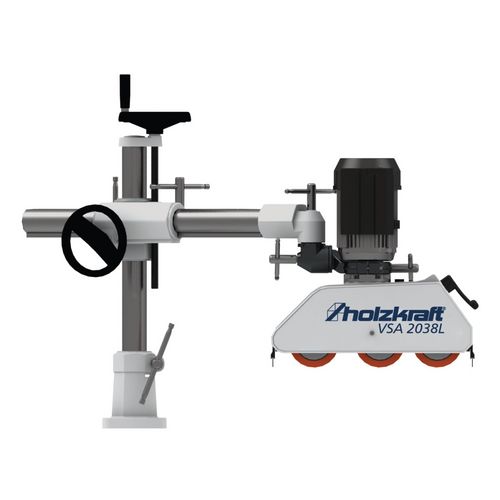

Productimage for VSA 2038 L
Brandimage to Product VSA 2038 L

Feeder

VSA 2038 L

with three rollers and eight speeds

1.069,00 EUR excl. Tax / pc(s).
1.282,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5119038

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Uniform feed rate without loss of force
    • Right and left rotation
    • Tripod included, individually swiveling and adjustable for horizontal and vertical use
    • Eight speeds possible, speed selection via switch and change gears



    • Uniform feed rate without loss of force
    • Right and left rotation
    • Tripod included, individually swiveling and adjustable for horizontal and vertical use
    • Eight speeds possible, speed selection via switch and change gears



    Number of feed rollers3 St
    Feed speed2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33 m/min
    Gears8
    Max. extension1050 mm
    Roller diameter120 mm
    Roller width60 mm
    Spring stroke of rollers20 mm
    VPE1
    Dimensions and weights
    Length approx.1524 mm
    Width/depth approx.220 mm
    Height approx.540 mm
    Weight approx.69.5 kg
    Explanation Weight approx.Tripod included
    Electrical Data
    Drive motor output0.75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
