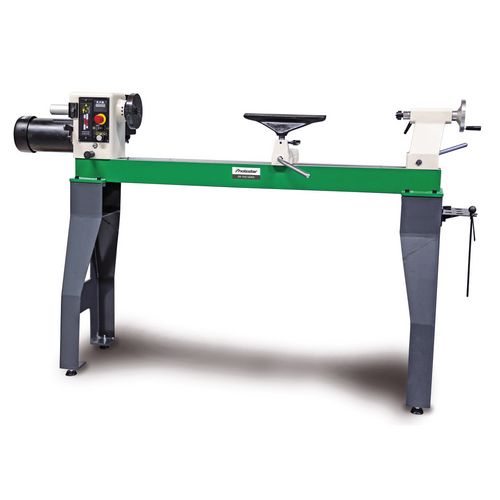

Woodturning lathe

DB 1102 Vario

with infinitely variable speed control

1.769,00 EUR excl. Tax / pc(s).
2.122,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5921102

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Variable speed control from 100 - 3200 min⁻¹ in two speed levels: 100 - 1200 and 250 - 3200 min⁻¹
    • Integrated digital display for speed
    • The torsion-resistant gray cast iron machine bed ensures smooth running and precision
    • Tailstock and headstock are also made of sturdy gray cast iron
    • Spindle unit can be moved freely on the machine bed
    • Tailstock as standard with rotating center point
    • Tailstock quill with bore for machining long workpieces
    • The tailstock is quickly and easily attached to the machine bed using single-lever clamping
    • Right-left rotation as standard



    • Machine bed, tailstock and headstock made of stable gray cast iron
    • Variable speed control from 100 - 3200 min⁻¹ in two speed levels: 100 - 1200 and 250 - 3200 min⁻¹



    Max. turning diameter408 mm
    Speeds100 – 3200 min¯¹
    Speed stages2
    Speed controlElectronically variable
    Travel of tailstock sleeve102 mm
    VPE1
    Dimensions and weights
    Length approx.1968 mm
    Width/depth approx.572 mm
    Height approx.1194 mm
    Weight approx.175 kg
    Electrical Data
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Driver
    • Tailstock
    • Latch pin
    • Hand rest 360 mm
    • Clamping plate 150 mm
    • Operating tool
