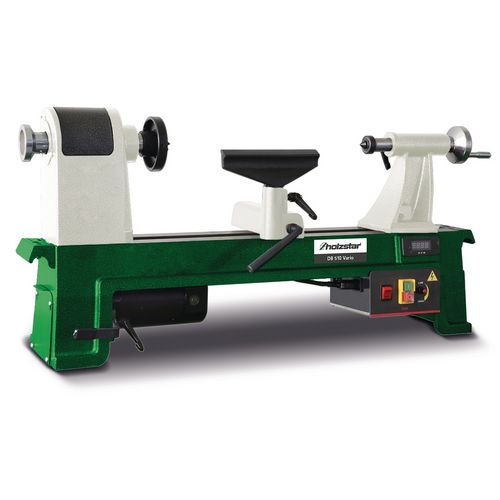

Woodturning lathe

DB 510 Vario

compact, robust design with stepless speed control

819,00 EUR excl. Tax / pc(s).
982,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5920510

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Machine bed made of torsion-resistant gray cast iron for smooth running and precision
    • Headstock made of stable gray cast iron
    • Spindle with high concentricity accuracy
    • Three infinitely adjustable speed ​​ranges
    • Standard with right-left rotation
    • Tailstock sleeve with through-hole for machining long workpieces
    • Simple tailstock fixation via quick-release lever
    • Tool rest easily adjustable



    • Machine bed, tailstock and headstock made of heavy gray cast iron
    • Stepless speed control
    • LED speed display
    • Clockwise and counterclockwise rotation



    Max. turning diameter355 mm
    Speeds250 – 720, 600 – 1700, 1200 – 3550 min¯¹
    Speed stages3
    Speed controlElectronically variable
    Travel of tailstock sleeve70 mm
    VPE1
    Dimensions and weights
    Length approx.1055 mm
    Width/depth approx.560 mm
    Height approx.460 mm
    Weight approx.50 kg
    Electrical Data
    Motor power input0,75 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Hand rest 200 mm
    • Clamping disc 100 mm
    • Revolving center point MK 2
    • 1 4-Prong Drive Center 25 mm
    • Operating tool



    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
