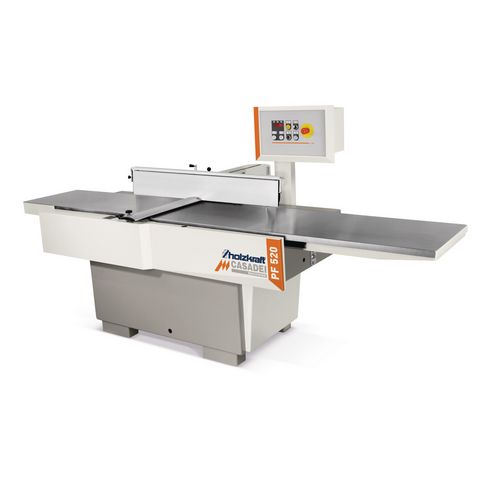

Productimage for CASADEI PF 520 M
Brandimage to Product CASADEI PF 520 M

Surface planer

CASADEI PF 520 M

With 520 mm planing width and motorized table adjustment

13.390,00 EUR excl. Tax / pc(s).
16.068,00 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5221520

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Dressing tables made of gray cast iron
    • The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and the knife shaft remains the same in every adjustment position
    • Large precision aluminium dressing fence, slightly tiltable 90 - 45 °
    • The inclination of the stop is easily readable from the operator side
    • As standard with auxiliary stop for safe planing of even narrow workpieces
    • Large four-knife shaft, precision-mounted
    • Quiet running with precision aggregate and heavy cast iron execution
    • Powerful industrial motor with direct start


    Additional equipment PF 520 M:

    • extra long inlet table
    • motorized adjustment of the dressing table
    • Digital display for chip removal


    Room amenities

    • Control panel over table
    • PF 520 M with motorized height adjustment of the infeed table and digital display of the chip removal


    • The dressing tables made of a highly ribbed cast construction remain permanently flat and precise
    • The planing tables are adjusted by a precise parallelogram system
    • Thus, the distance of the table tips to the blade shaft remains the same in each adjustment position


    Tersa planer knife

    • No adjustment and more screws
    • Planer blade change in seconds
    • self-locking
    • Especially low noise
    • Perfect planing result


    option
    Functionality "TX MATIC"

    • Optional lifting device of the protection
    • The bias pushes the protection against the workpiece
    • As a result, the blade shaft is always covered, which provides greater security



    • 520 mm working width
    • Motorized height adjustment of the feed table
    • Control panel above table
    • Digital display for chip removal
    • Incl. swivelling auxiliary fence
    • Reinforced motor 7,0 kW
    • Longer feed table
    • Aluminium dressing fence



    Dimensions and weights
    Length approx.3005 mm
    Width/depth approx.1457 mm
    Weight approx.870 kg
    Electrical Data
    Drive motor output5 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter thickness120 mm
    Jointing
    Task table length1775 mm
    Max. cutting depth8 mm
    Planing stop pivoting range90 – 45 °
    Planing knife shaft
    TypeStrip planer blade shaft
    Number of planing blades4 St
    Speed5000 min¯¹
    Max. planing width520 mm
    Thickness
    Max. cutting depth8 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
