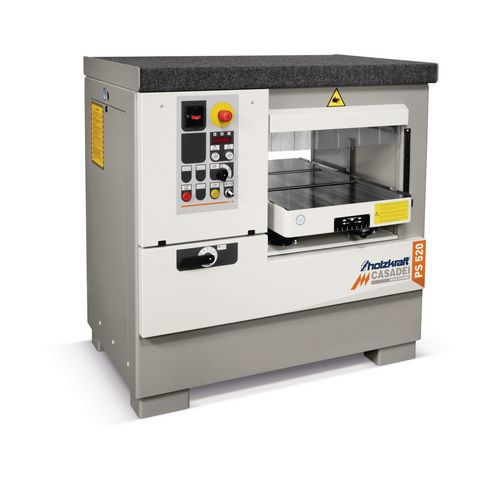

    Thicknessing plane

    CASADEI PS 520

    For highest demands with comfortable equipment

    12.350,00 EUR excl. Tax / pc(s).
    14.820,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 5221521

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Motorized thickness table lift with two speeds and digital display
    • The tables are made of rippled gray cast iron
    • 4 feed rates
    • Infinitely variable feed rate adjustment of 4-20 m / min. at PS 630
    • Standard with noise protection and chip protection curtain on the workpiece inlet and outlet
    • Roller contact pressure precisely adjustable
    • Feed roller easily replaceable

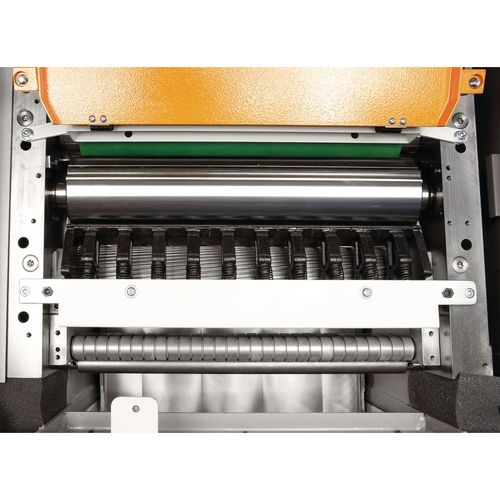

    • Helical steel pick-up roller for a constant and uniform wood intake
    • Extractor roller with rubber coating
    • Massive kickback devices prevent the kickback of workpieces
    • A 4-knife planer shaft ensures an optimal planer image
    • Powerful industrial engine



    Room amenities

    • Max. Processing height when planing 300 mm

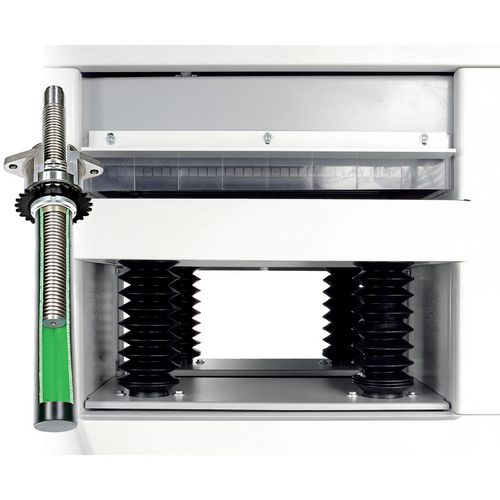

    • The worktable is mounted on four large trapezoidal threaded spindles, which ensure maximum stability under all working conditions
    • Standard with electric table adjustment
    • Due to the special lifting device, the table position is perfectly maintained even without locking


    • Massive kickbacks made of steel
    • Helical steel pickup roller and segmental pressure beam
    • Rubber coated extraction roller
    • The rollers are easily replaceable



    Dimensions and weights
    Length approx.1195 mm
    Width/depth approx.1033 mm
    Weight approx.695 kg
    Electrical Data
    Drive motor output7 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter thickness150 mm
    Feed
    Speed5/8/12/18 m/min
    Planing knife shaft
    TypeStrip planer blade shaft
    Number of planing blades4 St
    Speed4500 min¯¹
    Max. planing width520 mm
    Thickness
    Working height min.3.5 mm
    Working height max.300 mm
    Working length min.220 mm
    Max. cutting depth8 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1
