Dimensions and weights | |
---|---|
Column diameter | 92 mm |
Length approx. | 690 mm |
Width/depth approx. | 375 mm |
Height approx. | 2080 mm |
Weight approx. | 184 kg |

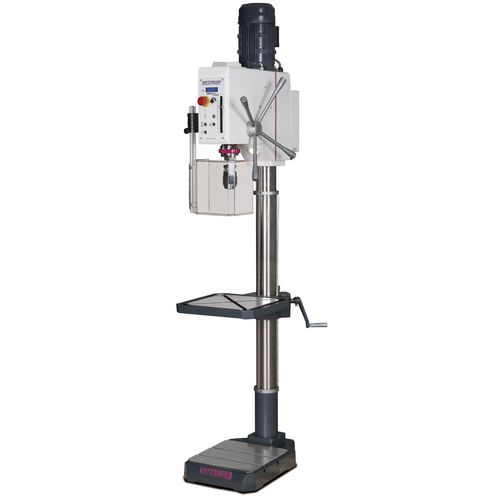

Upright drill
With gear wheels made of polyamide
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2024 in Germany.
Art.-No. 3034235
Dimensions and weights | |
---|---|
Column diameter | 92 mm |
Length approx. | 690 mm |
Width/depth approx. | 375 mm |
Height approx. | 2080 mm |
Weight approx. | 184 kg |
Drilling performance | |
---|---|
Drilling performance steel (S235JR) | 26 mm |
Continuous drilling performance steel (S235JR) | 23 mm |
Thread tapping steel (S235JR) | M 16 x 2 mm |
Drilling table | |
---|---|
Workspace length | 376 mm |
Workspace width | 394 mm |
T-groove type | diagonal |
T-groove size | 14 mm |
T-groove number | 2 |
Rotation | 360 ° |
Load bearing capacity | 100 kg |
Max. distance spindle - drilling table | 875 mm |
Electrical Data | |
---|---|
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Machine base | |
---|---|
Max. distance spindle - machine base | 1285 mm |
Work area length | 350 mm |
Work area width | 356 mm |
Machine base T-groove size | 14 mm |
Machine base T-groove number | 2 |
Machine base T-groove spacing | 120 mm |
Motor(s) | |
---|---|
Spindle motor drive output | 1,5 kW |
Speed range | |
---|---|
Speed range | 45 – 3200 min¯¹ |
Number of gears | 4 Steps |
Speed control | electronically adjustable |
Spindle | |
---|---|
Quill stroke | 127 mm |
Spindle chuck | MK 3 |
Reach | 260 mm |
Standards and certifications | |
---|---|
Standard | DIN EN 55011 |
EMV-Class | C2 |
VPE | 1 |
