| Dimensions and weights | |
|---|---|
| Max. height | 1590 (DPA) mm |
| Length approx. | 1760 mm |
| Width/depth approx. | 745 mm |
| Height approx. | 1320 mm |
| Weight approx. | 469 kg |
Guide and traction spindle lathes

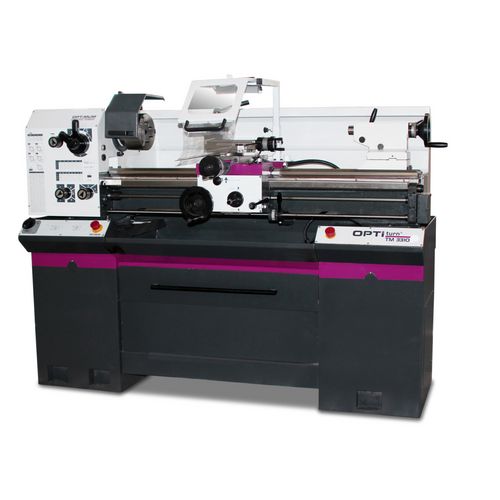

OPTIturn TM 3310
convinces with stable construction and easy handling
6.059,00
EUR excl. Tax / pc(s).
7.270,80 EUR incl. 20% Tax / pc(s).
7.270,80 EUR incl. 20% Tax / pc(s).
Promotional price *
5.799,00 EUR excl. Tax / pc(s).6.958,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3403020
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Hardened and ground Z-axis guideway
- Precisely machined carriage
- DC 24 volt electrics
- Motor protection switch
- Main motor electrically braked
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Smooth-running feed gear with rounded gears running in an oil bath
- Hardened main spindle mounted in adjustable, precise tapered roller bearings
- Right/left rotation switchable on the bed slide
- Two-channel safety electronics
- Handwheels with adjustable fine scaling 0.04 / 0.02 mm
- Safety handwheels with disengagement function according to EN23125 in the X and Z axis
- Switch rod on the bed slide for selecting longitudinal or face feed
- Switch with life cycle calculation tested in accordance with EN ISO 13849
- Machine base in sturdy steel construction
- Quadruple steel holder

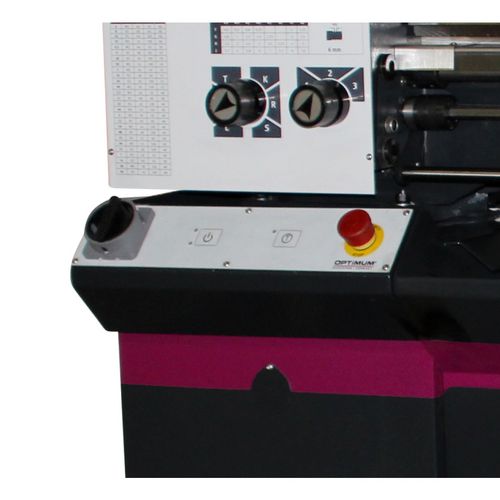

- Emergency stop switch right and left
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Longitudinal feed range | 0,02 – 0,4 mm/rev |
| Number of longitudinal feeds | 24 |
| Flat feed range | 0,01 – 0,2 mm/rev |
| Number of flat feeds | 32 |
| Pitches | |
|---|---|
| Metric pitch | 0,4 – 10 mm/rev |
| Number of metric pitches | 29 |
| Imperial pitch | 56 – 4 Gg/1" |
| Speed range | |
|---|---|
| Number of gears | 9 Steps |
| Speed range | 65 – 2000 min¯¹ |
| Spindle | |
|---|---|
| Spindle chuck | Camlock DIN ISO 702-2 No. 4 |
| Spindle bore/rod passage diameter | 38 mm |
| Tool holder max. chuck height | 16 mm |
| Spindle cone | MK 5 |
| Tailstock | |
|---|---|
| Chuck | MK 3 |
| Quill stroke | 100 mm |
| Quill diameter | 38 mm |
| Travel | |
|---|---|
| Travel upper slide | 90 mm |
| Travel cross slide | 168 mm |
| Travel carriage saddle | 850 mm |
| Work areas | |
|---|---|
| Max. height | 165 mm |
| Max. width | 1000 mm |
| Swing diameter above machine bed | 330 mm |
| Swing diameter above planing slide | 216 mm |
| Bed width | 190 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

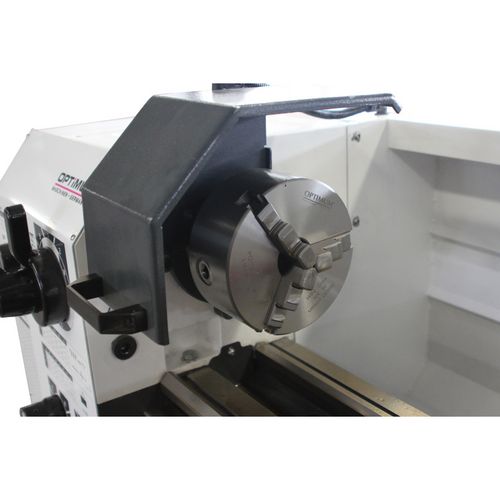

- three-jaw lathe chuck Ø 160 mm, No. 4

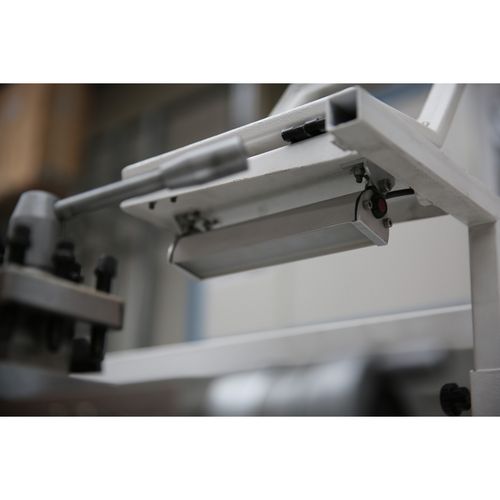

- LED machine light
- Reducing sleeve MK 5 / MK 3
- Non-rotating centring tip MK 3
- Quadruple steel holder 16 mm
- Change gear set
- Machine base
- Machine first filling with quality oil
- Operating tool
